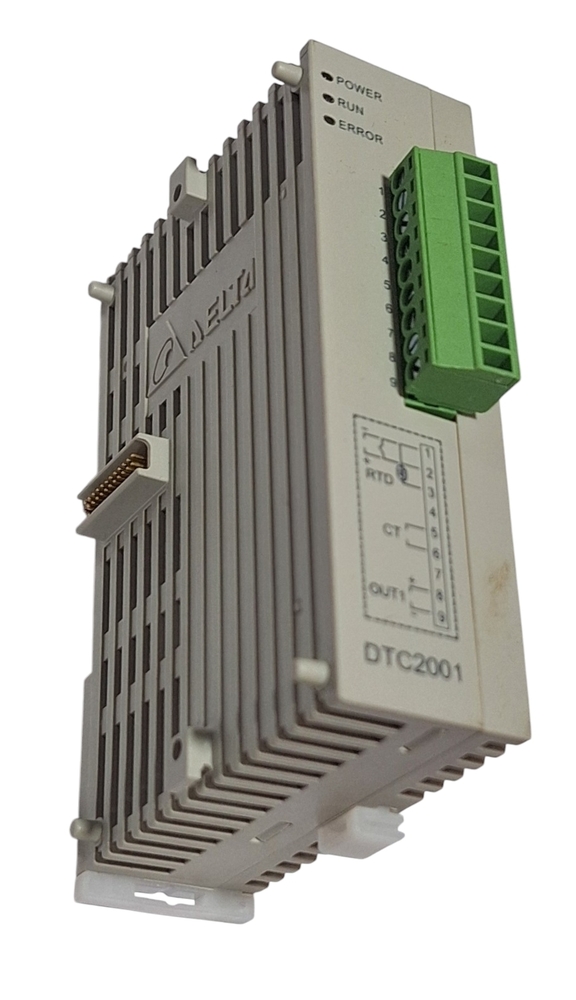

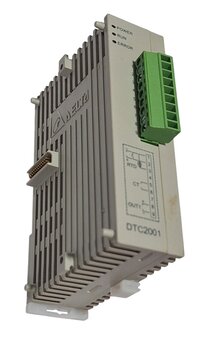

DELTA TEMPERATUR CONTROLLER DTC2001R

Name: DELTA TEMPERATUR CONTROLLER DTC2001R
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 2651 INR
Availability: InStock

Price 2651 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DELTA TEMPERATUR CONTROLLER DTC2001R Specification

Connectivity Type
Panel Mount (Terminal connection)

Control Type
PID / On-Off

Processor Type
Microprocessor Based

Application
Temperature Monitoring and Control

Remote Control
Yes

Mounting Type
Panel Mount

Sensor Type
Thermocouple & RTD input selectable

Frequency
50/60 Hz

Phase
Single Phase

Screen Size
4 Digit LED Display

Features
Universal Input, High Accuracy, Compact Size

Automation Grade
Automatic

Load Capacity
Depends on external relay/SSR

IP Rating
IP20

Cable Length
External sensor cable as required

Weight
Approx. 250g

Material
Plastic / Metal body

Power
100-240V AC (50/60Hz)

Temperature
Input range: -200°C to 1800°C

Voltage
100-240V AC

Operating Temperature
0°C to 50°C

Humidity
10-90% RH (non-condensing)

Model Number
DTC2001R

Resolution
1°C or 0.1°C (configurable)

Dimensions
48 x 48 x 110 mm

Alarms
Dual alarms (Configurable)

Display Colors
Red/Green

Sampling Time
250 ms

Output Type
Relay / SSR Drive Output

DELTA TEMPERATUR CONTROLLER DTC2001R About

Introducing the new DELTA TEMPERATUR CONTROLLER DTC2001R, a first-rate solution designed for prodigious temperature monitoring and control. This lavish device features a versatile universal input, configurable resolution (1C or 0.1C), and a vivid red/green 4-digit LED display. Engineered with a reliable microprocessor, the DTC2001R delivers reduced error rates and exceptional accuracy within a compact 48 x 48 mm panel mount housing. Enjoy the flexibility of relay or SSR drive output, dual configurable alarms, and robust plastic/metal build. Get enhanced automation for various industrial applications with this automatic, high-performance controller.

Advanced Features & Versatile Applications

The DELTA TEMPERATUR CONTROLLER DTC2001R boasts high accuracy, universal input support (thermocouple & RTD), dual configurable alarms, and user-friendly PID/On-Off control. It is suitable for use in demanding industrial environments, ensuring precise temperature monitoring across a wide range from -200C to 1800C. Ideal for process automation, manufacturing lines, and laboratory settings, its compact design and robust build make it perfect for panel mount installations where space and reliability are priorities.

Efficient Packaging & Quick Global Delivery

Order completion is streamlined for swift shipment of the DELTA TEMPERATUR CONTROLLER DTC2001R. Carefully packaged for safe transit, this controller is exported to main international markets, including Asia, Africa, and the Middle East. Order processing is efficient and can accommodate sample requests, supporting manufacturers, distributors, and traders. Every order is prepared with attention to detail, ensuring your product arrives intact and ready for immediate application.

FAQ's of DELTA TEMPERATUR CONTROLLER DTC2001R:

Q: How does the DELTA TEMPERATUR CONTROLLER DTC2001R ensure high accuracy in temperature monitoring?

A: The controller utilizes a microprocessor-based system with a configurable resolution (1C or 0.1C) and supports both thermocouple and RTD inputs, ensuring precise and reliable temperature measurement for various industrial processes.

Q: What makes the DTC2001R suitable for industrial applications?

A: Its wide input range (-200C to 1800C), dual alarms, robust plastic and metal body, and universally compatible input options make it ideal for continuous operation in challenging industrial environments and process automation.

Q: Where is the DELTA DTC2001R typically installed?

A: The compact and panel-mountable design of the DTC2001R allows it to be seamlessly integrated into control panels in manufacturing plants, laboratories, and other facilities requiring precise temperature regulation.

Q: What is the process for ordering and receiving a sample of the DTC2001R?

A: Potential buyers can request samples during the order processing phase. Upon completion, samples are shipped with the same attention to packaging and prompt delivery as full orders, ensuring reliable product evaluation.

Q: What are the main benefits of using this temperature controller?

A: Users benefit from universal input compatibility, high accuracy, user-configurable settings, robust construction, and reliable automation for temperature monitoring, making it a cost-effective solution for diverse applications.
