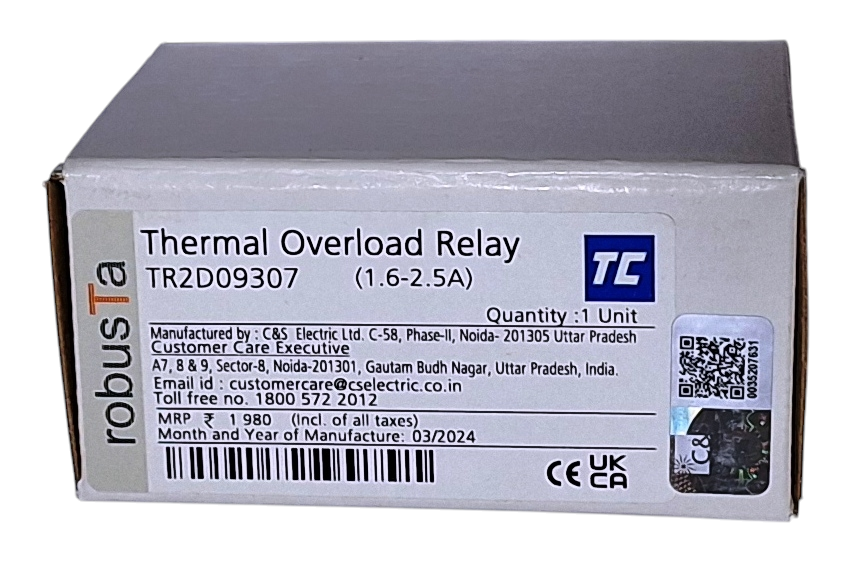

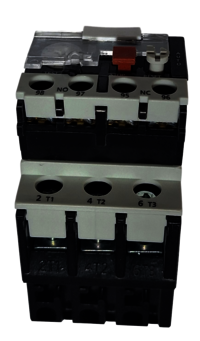

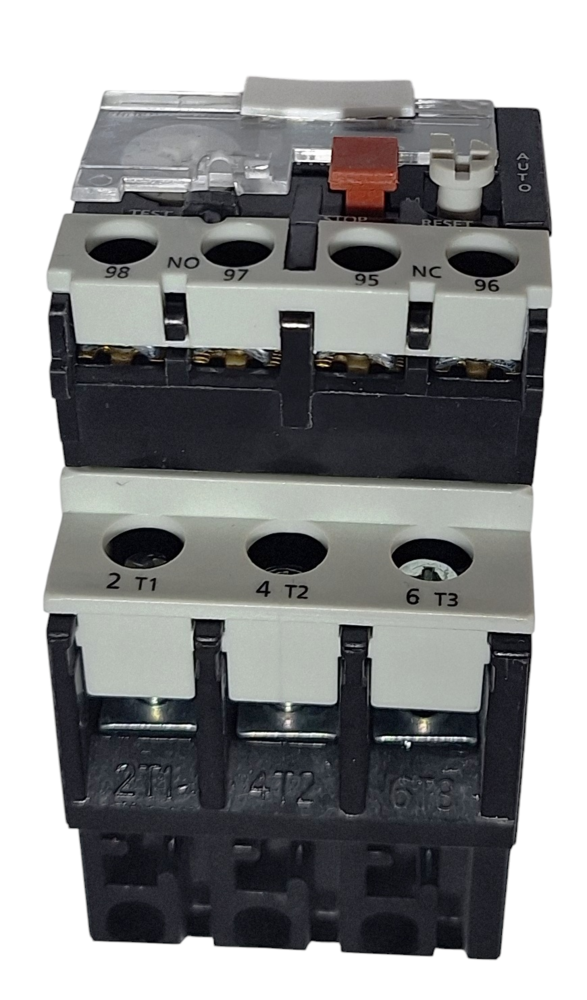

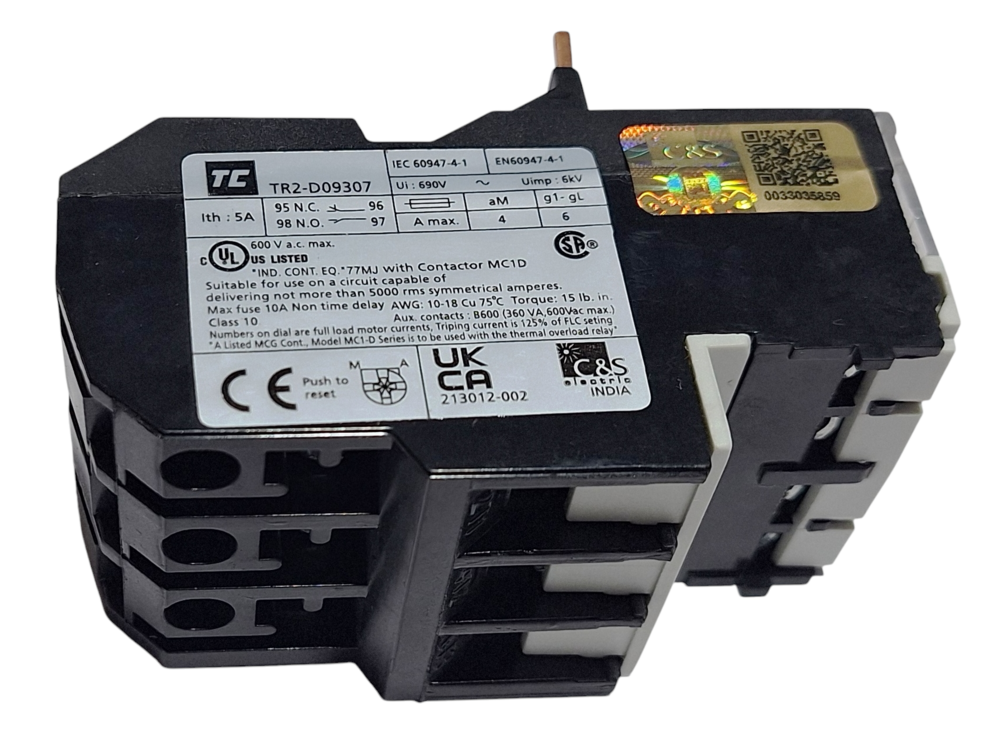

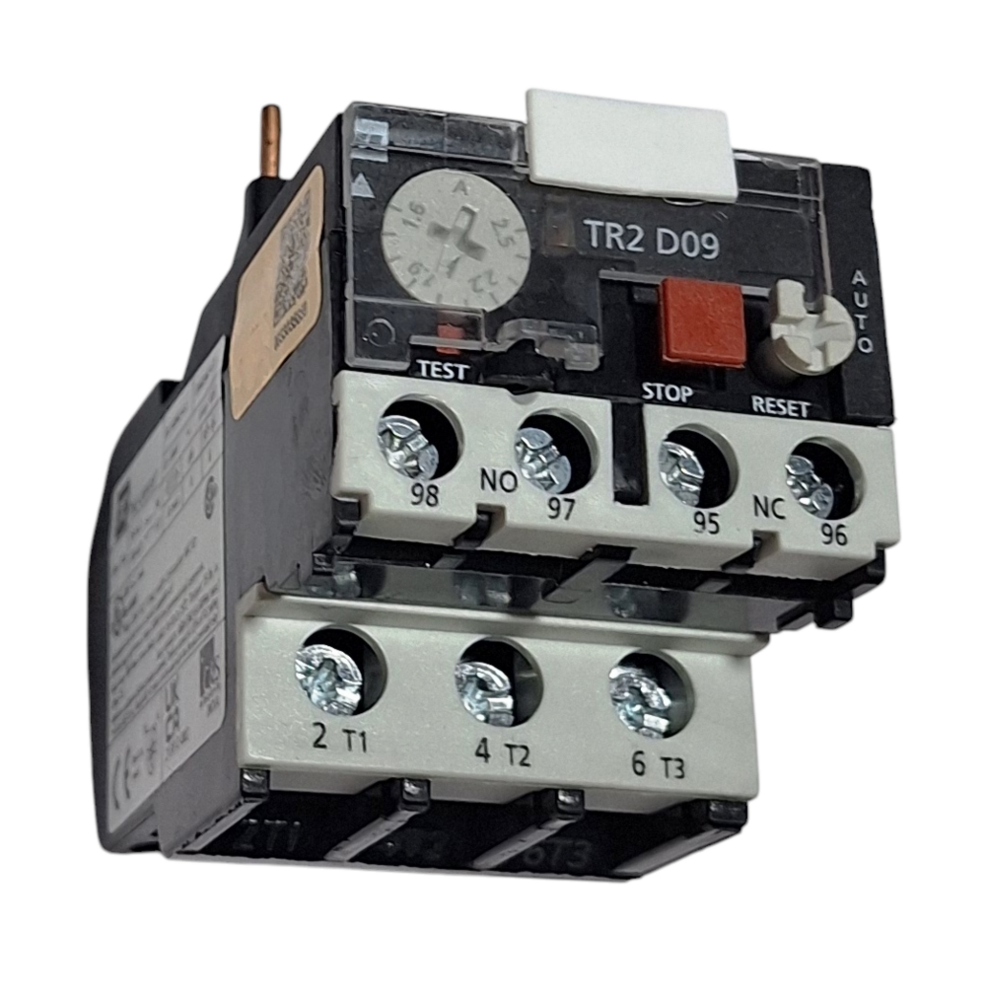

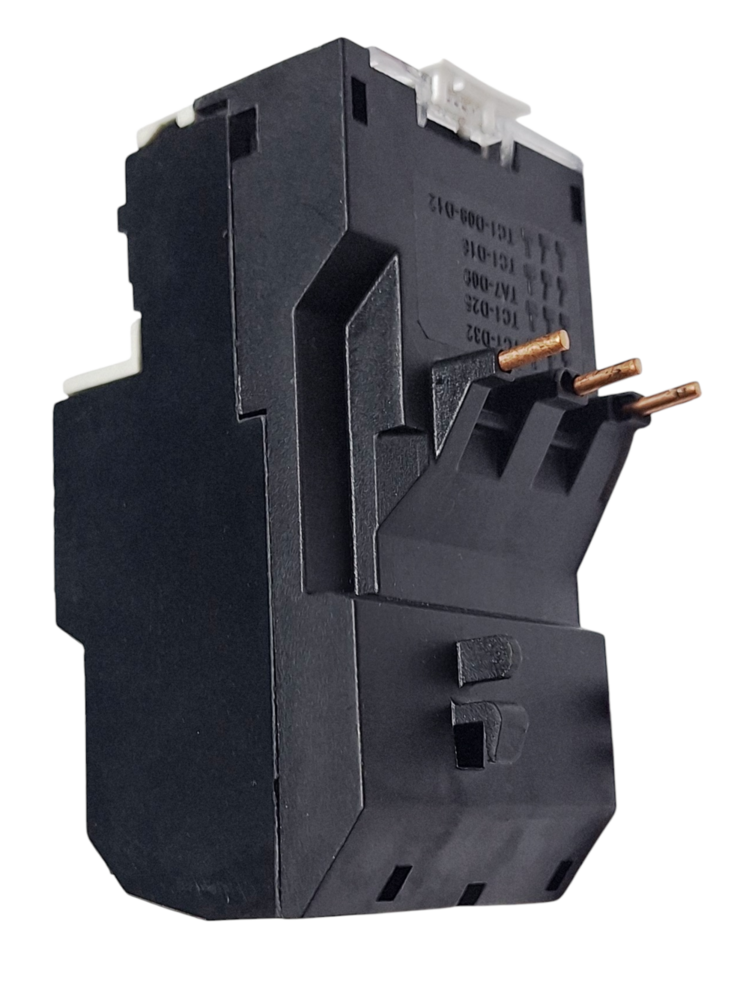

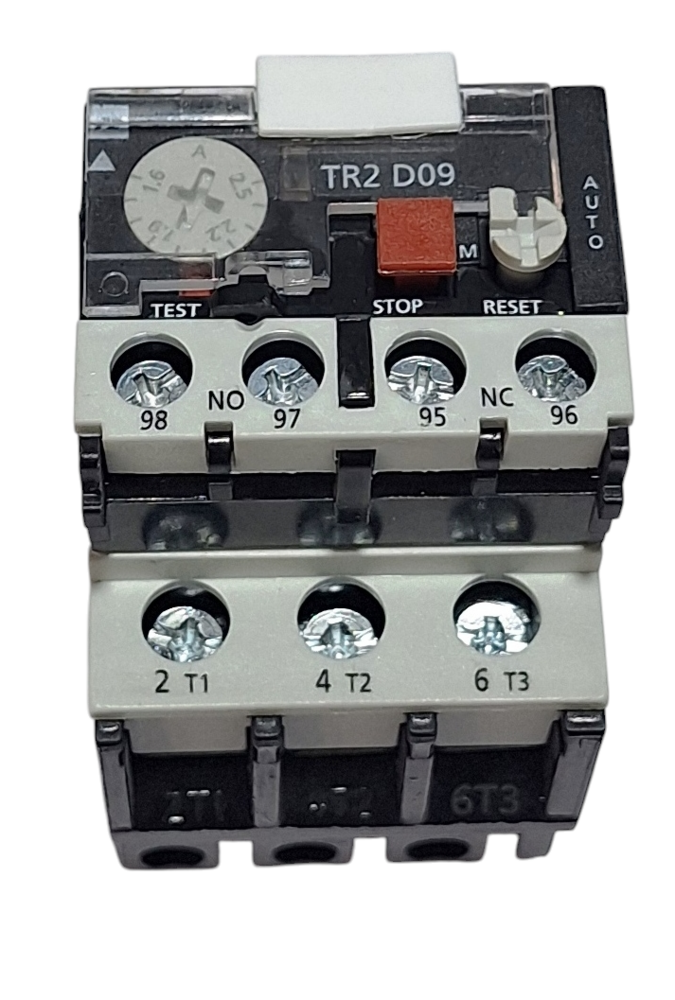

C&S OLR TR2D09307

Price 733 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S OLR TR2D09307 Specification

Automation Grade
Automatic

Remote Control
Yes

Features
Adjustable Current Setting, Phase Failure Protection, Manual/Auto Reset

Application
Industrial Motor Protection

Connectivity Type
Direct Mount

Sensor Type
Thermal Overload Relay

Weight
Approx 250g

Mounting Type
DIN Rail & Panel Mount

Control Type
Thermal & Magnetic

Load Capacity
Up to 7.5kW

Frequency
50/60Hz

Phase
Three Phase

IP Rating
IP20

Material
Plastic and Metal

Power
9-13A

Temperature
-20 to 60C

Voltage
690V AC

Auxiliary Contacts
1 NO + 1 NC

Operating Position
Any position

Product Name
C&S Electric Thermal Overload Relay

Setting Range
9-13A

Model Number
TR2D09307

Trip Class
Class 10A

Short Circuit Protection
No

About C&S OLR TR2D09307

C&S Electric Thermal Overload Relay, Model TR2D09307, is an invincible choice in industrial motor protection, boasting a robust design with plastic and metal for durability. With a setting range of 9-13A and both 1 NO + 1 NC auxiliary contacts, this popular relay provides class-leading thermal and magnetic control. Its ephemeral tripping precision ensures motors are shielded from overloads with virtuoso efficiency. Installable in any position, this towering solution is automatic, versatile, and fits IP20 requirements for safety across Indian manufacturing floors.

Versatile Protection in Demanding Environments

The C&S OLR TR2D09307 delivers eminent performance in industrial applications, protecting three-phase motors across sectors like manufacturing, HVAC, and processing plants. Designed for direct mounting on DIN rails and panels, it's suited for remotely located or on-site electrical control panels. This thermal overload relay excels in areas susceptible to variable loads, ensuring invincible protection for electric pumps, compressors, and conveyor systems, where reliable and responsive overload defense is needed most.

Seamless Supply, Secure Packaging, Global Reach

C&S OLR TR2D09307 units are dispatched with meticulous packaging to safeguard goods during transit. We ensure prompt delivery through reliable goods transport networks, guaranteeing minimal lead times for urgent needs. Standard and bulk packaging options accommodate both small and large-scale orders. With a significant supply ability and established distribution channels, we export to major markets across Asia, the Middle East, and Africa, ensuring timely product availability for top-rated clients worldwide.

FAQ's of C&S OLR TR2D09307:

Q: How does the C&S TR2D09307 Thermal Overload Relay operate?

A: This device utilizes both thermal and magnetic control to detect and respond to motor overloads, disconnecting the circuit when current exceeds the 9-13A range, and offering manual or automatic reset options.

Q: What are the main benefits of using the TR2D09307 in industrial environments?

A: The relay provides phase failure protection, adjustable current settings, and reliable overload defense, safeguarding critical motor systems and ensuring prolonged equipment life in variable load operations.

Q: Where can the C&S Electric TR2D09307 be installed?

A: It can be installed in any operating position on DIN rail or panel mounts, making it compatible with new or existing industrial control panels in sectors such as manufacturing, processing, and utilities.

Q: When should I adjust the current setting on my thermal overload relay?

A: Adjust the current setting to match the rated load current of your specific motor, within the 9-13A range, to ensure optimal trip response and preventative protection against overload situations.

Q: What is the process for the supply and delivery of this relay?

A: Orders are dispatched with tailored packaging that protects the product during goods transport, ensuring safe delivery. Standard supply ability enables fulfillment of both local and export demands efficiently.
