MULTISPAN MMC-1046RD-B1-00

Name: MULTISPAN MMC-1046RD-B1-00
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 1469 INR
Availability: InStock

Price 1469 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MULTISPAN MMC-1046RD-B1-00 Specification

Automation Grade
Automatic

Frequency
50/60 Hz

Control Type
Digital

Phase
Single Phase

Processor Type
Microcontroller based

Weight
Approx. 120g

Load Capacity
Up to 10A

Features
Multi-parameter monitoring, compact design

Mounting Type
Panel Mount

Connectivity Type
RS485 Modbus

Remote Control
Yes

Application
Industrial Control Panel

IP Rating
IP20

Screen Size
0.56 inch (7 segment LED)

Material
ABS Plastic Body

Power
230V AC

Temperature
-10°C to 60°C

Voltage
100~270 V AC/DC

Cutout Size
92 x 44 mm

Relay Output
SPST Relay

Indication
LED Status Indicators

Dimensions
96 x 48 x 58 mm

Model Number
MMC-1046RD-B1-00

Display Type
4 Digit Red LED Display

Operating Humidity
<95% RH non-condensing

Accuracy
±1% of Full Scale

MULTISPAN MMC-1046RD-B1-00 About

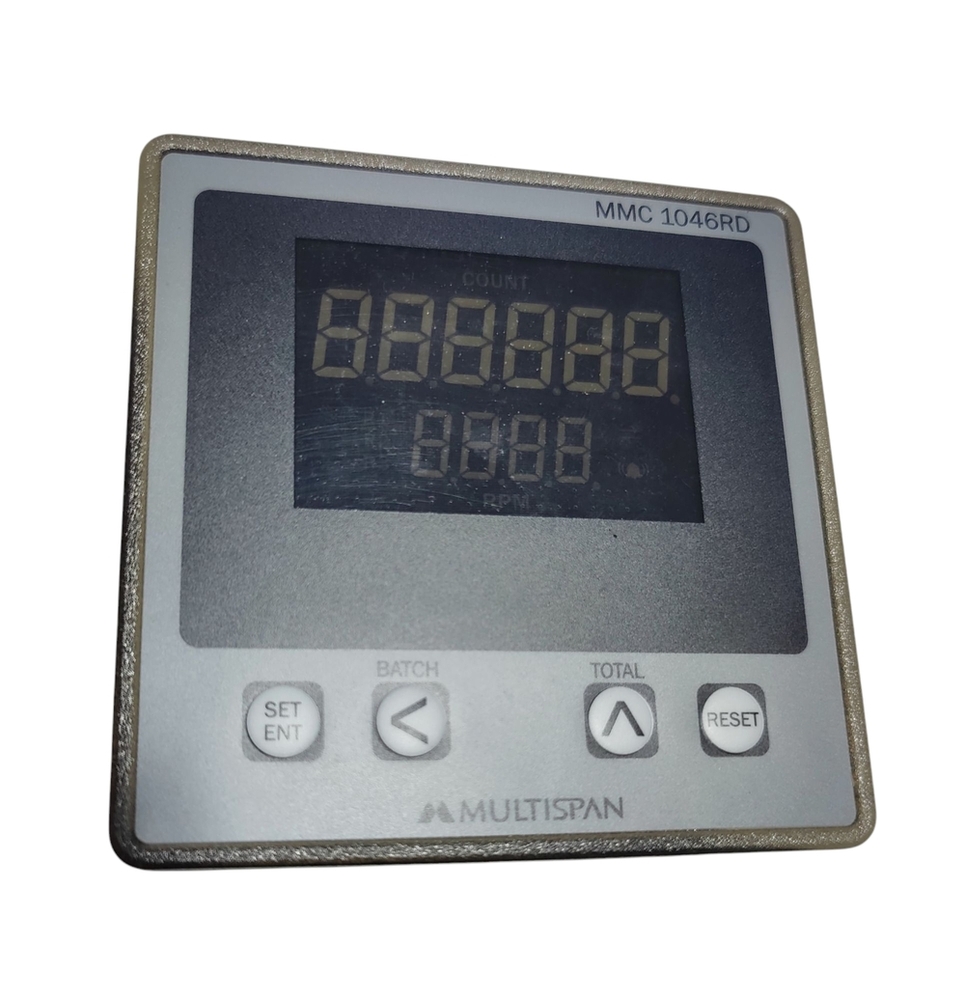

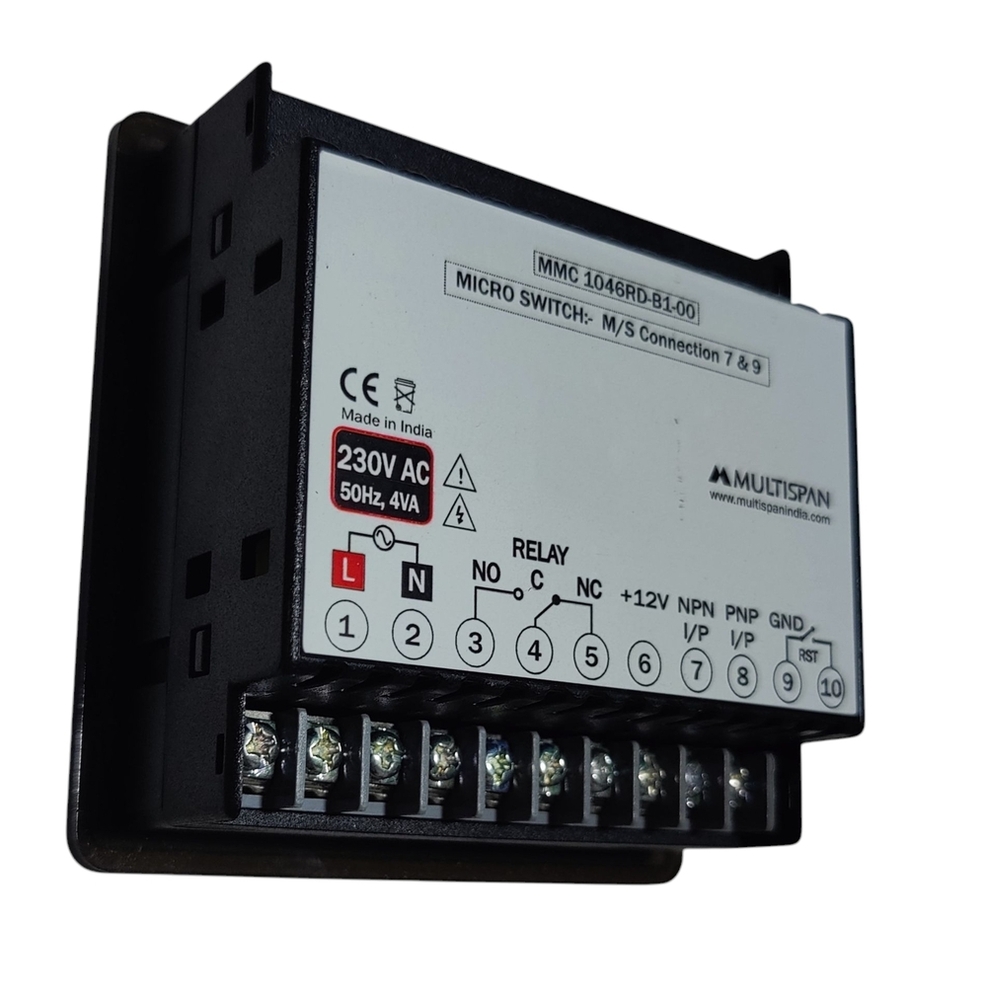

MULTISPAN MMC-1046RD-B1-00

AUX VOLTAGE :- 230V AC

OUTPUT :- 1R1C / O

ACTION :- A / M RESET , RESET AT BACK

SENSOR :- PROXIMITY NPN / PNP

RANGE :- COUNTER + RPM

Counter : 0 - 999999, RPM : 0 - 9999 1-Relay, 1-C/O,230V AC,5A 230V AC, 50 Hz, Approx 4VA

Reliable Performance in Demanding Conditions

The MMC-1046RD-B1-00 operates efficiently between -10C to 60C and in humid environments (below 95% RH, non-condensing). Its wide voltage acceptance (100~270 V AC/DC) and power support (230V AC) make it adaptable to various industrial applications. Panel mounting and a compact design (96 x 48 x 58 mm) enable easy installation in control panels.

User-Friendly Digital Display and Control

Featuring a 4-digit red LED screen and intuitive LED status indicators, users can quickly assess system states and readings. Digital control ensures high precision, while the microcontroller-based architecture provides reliable automation and consistent performance, reducing manual intervention.

Versatile Integration with Industrial Systems

Connectivity is seamless with RS485 Modbus support, facilitating integration into modern industrial networks. The robust SPST relay output and multi-parameter capability allow for flexible control applications, from monitoring to automation, serving distributors, manufacturers, and suppliers across India.

FAQ's of MULTISPAN MMC-1046RD-B1-00:

Q: How is the MULTISPAN MMC-1046RD-B1-00 installed in a control panel?

A: The device is designed for panel mounting, requiring a cutout of 92 x 44 mm. Simply fit the unit into the cutout and secure it as per the installation guide to ensure stable operation and easy access to its display and controls.

Q: What parameters can be monitored using this controller?

A: The MMC-1046RD-B1-00 supports multi-parameter monitoring, making it suitable for various industrial control applications. Specific monitored variables depend on the sensors and configuration used within your setup.

Q: When should the relay output on the MMC-1046RD-B1-00 be used?

A: The relay output (SPST, up to 10A) should be used when you need to control external devices based on monitored values, such as alarms or actuators, within your industrial system. Relay operation is automated according to your programmed set points.

Q: Where is the MMC-1046RD-B1-00 commonly used?

A: This controller is typically installed in industrial control panels across manufacturing, processing plants, and automation systems, particularly where precise monitoring and control of electrical parameters are needed.

Q: What process does the microcontroller-based system follow for accuracy?

A: The integrated microcontroller processes signals from connected inputs, samples readings, and applies programmed set points and logic to deliver control actions-maintaining an accuracy of 1% of the full scale.

Q: How does RS485 Modbus connectivity benefit users?

A: RS485 Modbus connectivity allows the controller to communicate with other devices in an industrial network, enabling centralized monitoring, remote configuration, and system integration for streamlined operations.

Q: What are the primary advantages of using the MMC-1046RD-B1-00 in industrial settings?

A: Key benefits include reliable digital monitoring, compact and robust design, easy integration with standard industrial protocols (RS485 Modbus), automatic control capabilities, and suitability for a wide range of industrial operating conditions.
