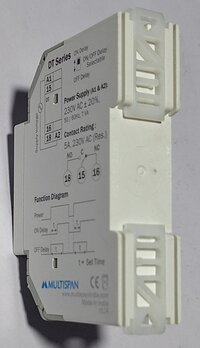

MULTISPAN DT-60S-B1-00

Name: MULTISPAN DT-60S-B1-00
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 319 INR
Availability: InStock

Price 319 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MULTISPAN DT-60S-B1-00 Specification

Connectivity Type
Panel mount terminals

Application
On/Off control for industrial processes, digital timer

Mounting Type
Panel Mount

Processor Type
Microcontroller-based

Control Type
Digital Timer (Cyclic/Sequential)

Frequency
50/60 Hz

Automation Grade
Automatic

Weight
Approx. 150g

IP Rating
IP20

Load Capacity
Resistive Load up to 5A at 230V AC

Features
Large 0.56 RED 7 segment LED Display, Memory Retention, Cyclic & Sequential Output Timer

Screen Size
2 inch Numeric Display

Remote Control
Yes

Phase
Single Phase

Material
Plastic case, Electronic components

Power
85-270V AC/DC

Temperature
0C to 50C operating temperature

Voltage
85-270V AC/DC

Preset Memory
Yes

Input Type
Start Switch/Pulse

Output Relay
1 C/O (Changeover), 5A @230V AC

Display Type
4 Digit, 7 Segment LED

Enclosure Size
72 x 72 mm

Timing Range
0.01 sec to 9999 hours

Number of Digits
4 Digit

MULTISPAN DT-60S-B1-00 About

MULTISPAN DT-60S-B1-00

AUX VOLTAGE :- 230V AC

OUTPUT :- 1 RELAY

ACTION :- N / A

SENSOR :- N / A

RANGE :- 0 TO 60SEC

415 V AC i20%, 50 Hz 1-Relay O/P (1-C/O, 5A 230 VAC Resistive Load) 0 to 60 SEC (For DT 60S)

Versatile Timing for Industrial Automation

The DT-60S-B1-00 is engineered to meet demanding automation requirements in industrial environments. With its wide timing range and memory retention, it provides consistent and flexible control for various on/off processes, enhancing productivity and operational accuracy in manufacturing and process control applications.

User-Friendly Operation and Design

Featuring a large, red 4-digit LED display and simple panel mount terminal connectivity, this timer ensures quick setup and precise monitoring. Its compact, durable enclosure and automatic control grade allow for seamless integration into new or existing panels, minimizing installation time and maintenance.

FAQ's of MULTISPAN DT-60S-B1-00:

Q: How is the MULTISPAN DT-60S-B1-00 timer installed in a control panel?

A: The timer is designed for panel mounting using the standard 72 x 72 mm enclosure. It connects via panel mount terminals for easy integration into your control panel setup.

Q: What types of applications can this digital timer be used for?

A: This timer is suitable for on/off control in various industrial automation processes, such as sequential or cyclic timing for machinery, batch processing, or any requirement for precise interval control.

Q: When does the preset memory function become useful in operation?

A: The preset memory is beneficial during power interruptions as it retains your set timing parameters, ensuring no need for reprogramming when power is restored.

Q: Where can I use this timer with respect to its voltage and temperature specifications?

A: The timer operates on a wide voltage range of 85-270V AC/DC and is suitable for environments with temperatures between 0C and 50C, making it ideal for most industrial locations.

Q: What is the process for setting the timing range on this device?

A: You can set your desired timing value using front-panel control buttons. The microcontroller-based system allows precise adjustments within the range of 0.01 seconds up to 9999 hours.

Q: How does the cyclic/sequential control function benefit industrial processes?

A: The cyclic and sequential timer modes streamline automated processes by enabling equipment to operate in repeating or stepped patterns without manual intervention, optimizing efficiency and operational consistency.
