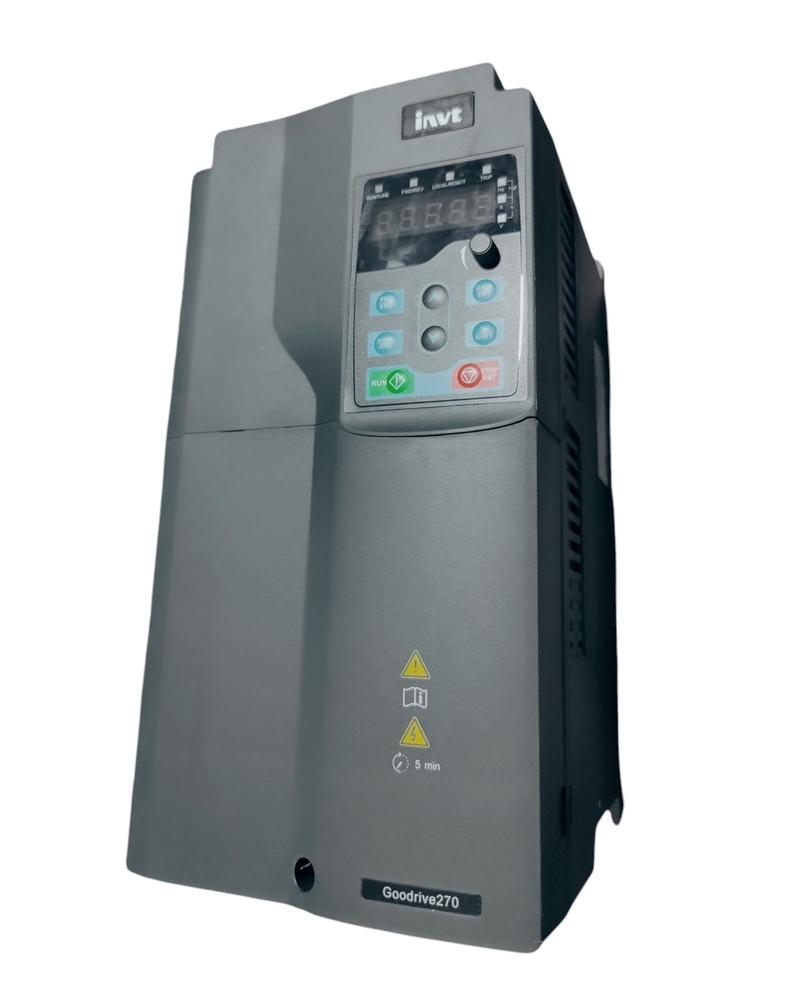

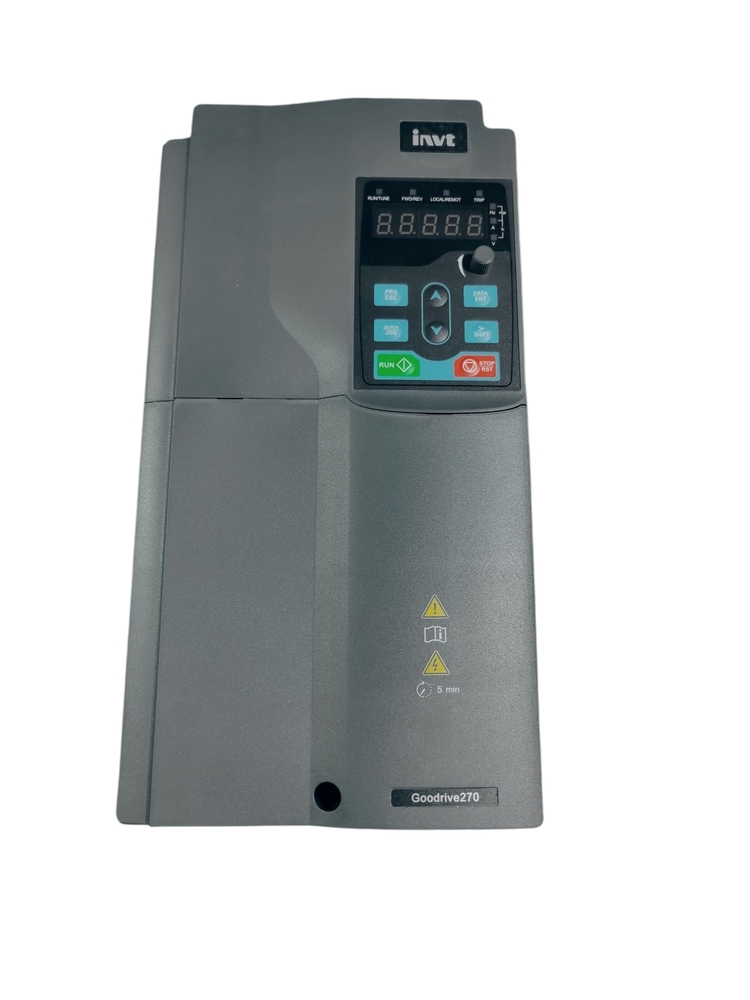

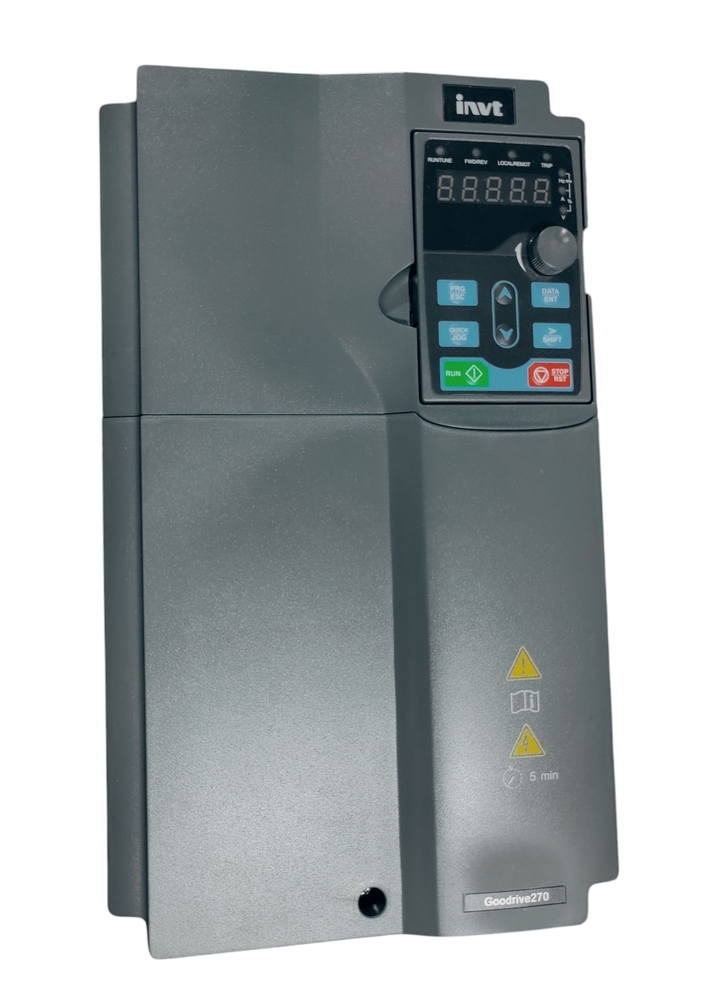

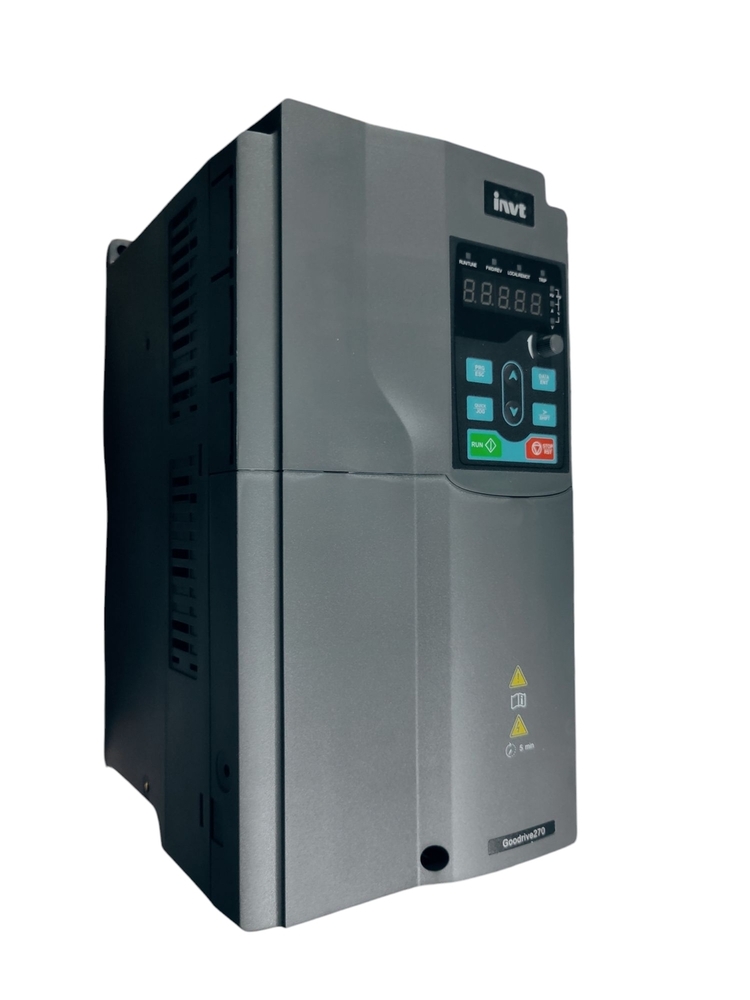

INVT VFD GD270-022G-4 22KW/30HP 3PHASE

Name: INVT VFD GD270-022G-4 22KW/30HP 3PHASE
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 30800 INR
Availability: InStock

Price 30800 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

INVT VFD GD270-022G-4 22KW/30HP 3PHASE Specification

Features
Energy-Saving, Overload Protection, User-Friendly Interface, Inbuilt EMC Filter

Connectivity Type
RS-485 (MODBUS)

Automation Grade
Automatic

Load Capacity
22 kW Rated Load

Frequency
50/60 Hz

Control Type
Vector Control (V/F, Sensorless)

Screen Size
LCD Display Panel

Cable Length
Depends on Installation

Weight
17 kg (approximate)

Drive Type
AC Drive

Application
Industrial Motor Control, Pumps, Fans, Conveyors

IP Rating
IP20

Remote Control
Yes

Sensor Type
Sensorless Vector Control

Mounting Type
Wall Mounted / Panel Mounted

Speed Range
0.5 Hz to 400 Hz

Processor Type
DSP-Based Processor

Phase
Three Phase

Material
Plastic, Metal

Power
22 kW (30 HP)

Temperature
-10°C to 40°C

Voltage
380-415V AC

Analog Inputs/Outputs
2 AI, 1 AO

Humidty Range
Below 95% RH, non-condensing

Start Up Torque
150% at 1 Hz

Digital Inputs/Outputs
6 DI, 2 DO

Enclosure Type
Open/Panel Mount

Motor Compatibility
Asynchronous and Synchronous Motors

Model Number
GD270-022G-4

Storage Temperature
-20°C to +65°C

Overload Capacity
150% for 60 seconds

Altitude Limit
Derate above 1000m

Braking Function
Built-in Braking Unit

Shipping Dimensions (LxWxH)
Approx. 400 x 250 x 300 mm

Noise Level
<75 dB

Display Language
English

Protections
Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Phase Loss, Ground Fault

Cooling Method
Fan Cooling

INVT VFD GD270-022G-4 22KW/30HP 3PHASE About

Take advantage of the exceptional capabilities of the INVT VFD GD270-022G-4 22KW/30HP 3PHASE AC Drive. Jump on this top-tier solution, designed to deliver remarkable performance in industrial motor control applications such as pumps, fans, and conveyors. This noble drive supports both asynchronous and synchronous motors and features a built-in braking unit for reliable stopping. With safeguards including overcurrent, overvoltage, and ground fault protection, you can trust its durability. Its energy-saving design, robust user interface, and inbuilt EMC filter make it a preferred choice for distributors, manufacturers, and traders across India.

Exceptional Performance and Features

The INVT VFD GD270-022G-4 22KW/30HP offers competitive advantages like energy-saving operation, a cutting-edge DSP-based processor, and user-friendly LCD controls. With robust protections and multiple digital and analog inputs/outputs, it excels in versatility and safety. Its compact enclosure enables wall or panel mounting for flexible installation in demanding environments. Direction of use is straightforward, ideal for industrial processes that require seamless integration and outstanding control precision.

Packaging, Market Reach, and Payment Terms

The INVT VFD GD270-022G-4 serves both the main domestic market in India and prominent export markets. Each unit is packaged securely to ensure safe packing & dispatch. Our streamlined shipment process ensures timely delivery, supported by various convenient payment terms for business clients. Whether for a large-scale industrial application or customized requirements, our reliable packaging and logistics deliver great value to partners and customers worldwide.

FAQ's of INVT VFD GD270-022G-4 22KW/30HP 3PHASE:

Q: How does the INVT VFD GD270-022G-4 enhance industrial motor control systems?

A: The GD270-022G-4 improves control precision and energy efficiency for motors in pumps, fans, conveyors, and more. Its advanced vector control and 150% startup torque at 1 Hz offer smooth and reliable operations.

Q: What extra features set the GD270-022G-4 apart from other VFDs?

A: This device boasts built-in braking, comprehensive protections, an inbuilt EMC filter, a user-friendly LCD interface, and flexible analog/digital I/O options, making it exceptionally versatile for industrial use.

Q: Where can the INVT VFD GD270-022G-4 be installed?

A: The unit supports wall-mounted or panel-mounted installation to suit varied industrial environments while maintaining an IP20 protection rating.

Q: When is it necessary to derate the device's capacity?

A: If the installation altitude exceeds 1000 meters, derating is required to ensure optimal performance and long-term reliability.

Q: What is the process to connect the GD270-022G-4 to remote control systems?

A: This model supports RS-485 (MODBUS) connectivity. Integration into automation networks is straightforward, allowing for remote monitoring and control.

Q: How does packaging and shipment work for domestic and export orders?

A: Each drive is securely packaged to prevent damage during packing & dispatch. Shipment is handled with care for both domestic and international deliveries, ensuring prompt and safe arrival.
