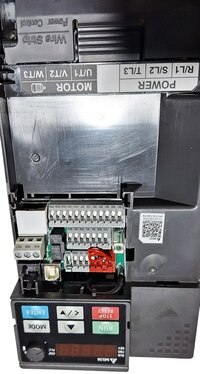

DELTA VFD MS300 VFD17AMS43ANSAA

Name: DELTA VFD MS300 VFD17AMS43ANSAA
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 21489 INR
Availability: InStock

Price 21489 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DELTA VFD MS300 VFD17AMS43ANSAA Specification

Frequency
50/60 Hz

Cable Length
User configurable

Automation Grade
Automatic

Features
EMC Filter Built-in, STO Safety Function, Energy Saving, PLC Function.

Remote Control
Yes

Mounting Type
Panel mount (vertical)

Drive Type
AC Drive (Variable Frequency Drive)

IP Rating
IP20

Sensor Type
Current sensor and temperature sensor integrated

Connectivity Type
RS-485 Modbus Communication

Phase
Three Phase

Weight
Approx. 1.5 kg

Processor Type
32-bit Dual CPU

Application
Industrial machinery, Pumps, Fans, Conveyor Systems

Speed Range
0.0 - 590.0 Hz

Control Type
Vector Control / V/F Control

Load Capacity
1.5 kW (2HP)

Screen Size
5-digit, 7-segment LED display

Material
Plastic and metal composite body

Power
1.5 kW (2HP)

Temperature
-10°C to +50°C (operating)

Voltage
3 Phase, 380 ~ 480V AC, ±15%

Cooling System
Forced Air Cooling (Fan)

Braking Unit
Built-in

Relay Outputs
2 dry contact relays

Analog Inputs
2

Digital Inputs
7 (programmable)

Model
VFD17AMS43ANSAA

Standards Compliance
CE, UL, cUL

Protection
Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short-circuit, Stall

Overload Capacity
150% for 60 seconds, 200% for 3 seconds

DELTA VFD MS300 VFD17AMS43ANSAA About

DELTA VFD MS300 VFD17AMS43ANSAA

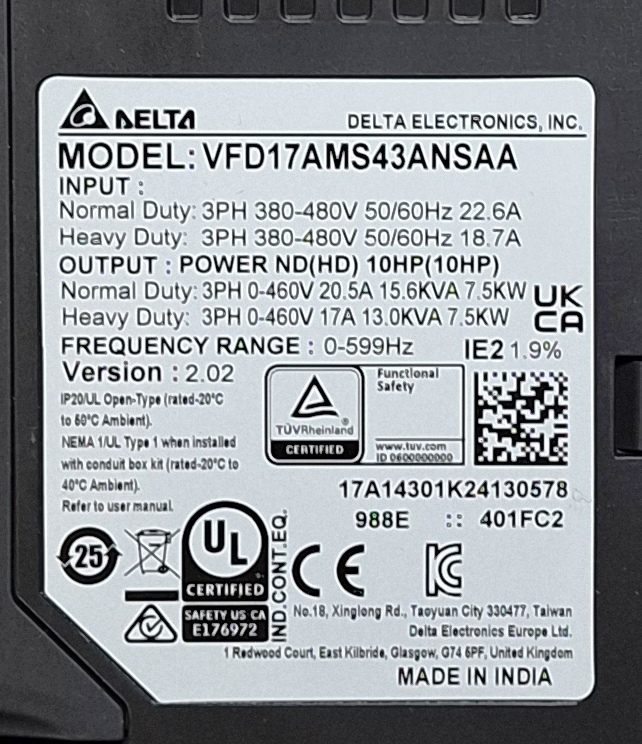

INPUT :

NORMAL DUTY :- 3PH 380-480V , 22.6A , 50/60HZ

HEAVY DUTY :- 3PH 380-480V , 18.7A , 50/60HZ

OUTPUT : POWER 10HP ND (HD)

NORMAL DUTY :- 3PH 0-460V , 20.5A , 15.6KVA , 7.5KW

HEAVY DUTY :- 3PH 0-460V , 17A , 13.0KVA , 7.5KW

FREQUENCY RANGE :- 0-599HZ

10 HP - 460 V

Enhanced Performance and Flexibility

The DELTA MS300 VFD17AMS43ANSAA delivers precise motor control with vector and V/F operation, supporting a wide speed range from 0.0 to 590.0 Hz. Its programmable digital and analog inputs, along with dry contact relay outputs, allow seamless integration into complex automation systems. The built-in braking unit and STO safety function further increase versatility and safety for diverse industrial applications.

Robust Protection and Compliance

This drive is engineered to withstand harsh industrial environments, offering comprehensive protection against overvoltage, undervoltage, overcurrent, overtemperature, short-circuit, and motor stall. With CE, UL, and cUL certifications, the VFD meets global safety and quality standards, making it a reliable choice for manufacturers, suppliers, and traders across India.

Ease of Installation and Operation

Designed for straightforward panel mounting and vertical installation, the VFD17AMS43ANSAA is housed in a durable composite body. It features forced air cooling via a built-in fan and supports remote operation with an optional external keypad. The 5-digit LED display ensures quick monitoring and setup, while the integrated EMC filter simplifies compliance with industrial EMC requirements.

FAQ's of DELTA VFD MS300 VFD17AMS43ANSAA:

Q: How do I install the DELTA VFD MS300 VFD17AMS43ANSAA in my control panel?

A: The VFD17AMS43ANSAA is designed for vertical panel mounting. Ensure suitable ventilation to support the forced air cooling system. Follow the supplied wiring diagrams and connect all power and control terminals securely, paying attention to phase, voltage, and input/output specifications for safe operation.

Q: What are the main applications of this VFD model?

A: This variable frequency drive is ideal for industrial machinery, pumps, fans, and conveyor systems. Its wide speed range and programmable inputs/outputs enable use in diverse automation tasks, optimizing motor efficiency and process control in both manufacturing and infrastructure settings.

Q: When should I use the built-in braking unit?

A: The built-in braking unit is especially useful for applications that involve frequent stops or require rapid deceleration, such as conveyors and lifts. It dissipates excess energy during stopping, enhancing the drive's safety and protecting the connected motor from potential damage.

Q: Where can this VFD be used considering environmental conditions?

A: The VFD17AMS43ANSAA operates reliably in temperatures between -10C to +50C and is suitable for indoor installations with an IP20 protection rating. It should be protected from excessive dust or moisture for optimal longevity and performance.

Q: What is the process for programming digital inputs and relay outputs?

A: Programming digital inputs and relay outputs can be accomplished through the drive's front panel keypad or by connecting to a PC via the RS-485 Modbus interface. Each input/output is fully configurable, allowing users to assign functions such as start/stop, speed control, or fault indication according to application requirements.

Q: How does the VFD benefit my industrial automation system?

A: The DELTA MS300 series VFD enhances operational efficiency by providing energy-saving functions, precise speed control, and integrated safety features like STO. Its compliance with international standards ensures quality and safety, while the built-in PLC function reduces the need for separate controllers, simplifying your automation architecture.
