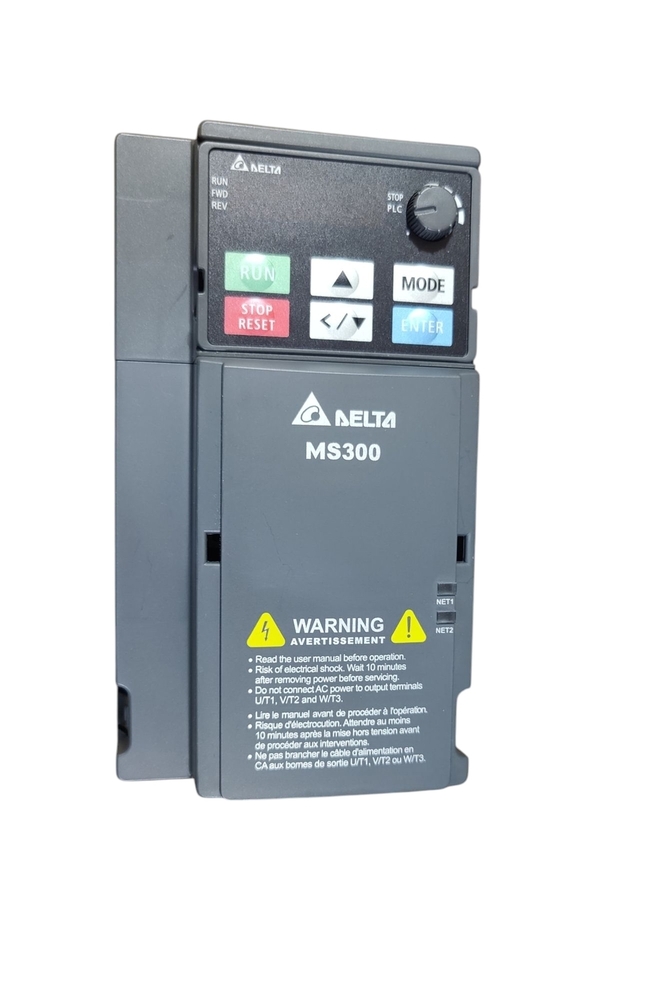

DELTA VFD MS300 VFD11AMS21ANSAA

Name: DELTA VFD MS300 VFD11AMS21ANSAA
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 13082 INR
Availability: InStock

Price 13082 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DELTA VFD MS300 VFD11AMS21ANSAA Specification

Speed Range
1:200 (Vector Control)

Automation Grade
Automatic

Frequency
50/60 Hz

Control Type
Vector Control, V/F Control

Remote Control
Yes

Processor Type
32-bit High Performance Processor

Drive Type
Variable Frequency Drive

Features
Built-in PLC, Safe Torque Off, Energy Saving Mode

Load Capacity
Up to 150% for 60 seconds

Weight
Approx. 6.0 kg

Phase
Three Phase

Screen Size
4-digit 7-segment LED Display

IP Rating
IP20

Cable Length
User Defined

Sensor Type
Optional External Sensor

Connectivity Type
RS-485 (Modbus) Communication

Mounting Type
Wall Mounted / Panel Mounted

Application
Industrial Automation, Motor Control

Material
Plastic and Metal

Power
11 kW / 15 HP

Temperature
-10°C to 50°C

Voltage
Three Phase 400V AC

Display Language
Multi-language

Noise Level
<70dB at rated load

Motor Types Supported
Induction, Permanent Magnet Synchronous Motors

Digital Outputs
2 programmable relay outputs

Braking Unit
Built-in

Analog Inputs
2 (Voltage/Current)

Digital Inputs
6 programmable

Output Current
24 A

EMC Filter
Built-in C2 (industrial) filter

Frame Size
B3

Analog Outputs
1 (Voltage)

Cooling Method
Forced Air Cooling

Protection Functions
Overvoltage, Undervoltage, Overcurrent, Ground Fault, Overheat, Motor Stall

Overload Capacity
150% for 60s, 200% for 3s

About DELTA VFD MS300 VFD11AMS21ANSAA

DELTA VFD MS300 VFD11AMS21ANSAA

INPUT : NORMAL DUTY :- 1PH 200-240V , 27.5A , 50/60HZ

HEAVY DUTY :- 1PH 200-240V , 24.2A , 50/60HZ

OUTPUT : POWER 3HP ND (HD)

NORMAL DUTY :- 3PH 0-230V , 12.5A , 4.8KVA , 2.2KW

HEAVY DUTY :- 3PH 0-230V , 11A , 4.2KVA , 2.2KW

FREQUENCY RANGE :- 0-599HZ

3 HP - 220 V

Optimized for Industrial Automation

Engineered for dependable performance in industrial settings, the MS300 VFD11AMS21ANSAA delivers precise motor control with support for both induction and permanent magnet synchronous motors. Its automatic operation, built-in PLC, and wide speed range ensure flexibility and efficiency for automation processes, maximising productivity while maintaining low maintenance demands.

Advanced Protection and Connectivity

Integrated protection functions, including overvoltage, undervoltage, overcurrent, and ground fault protection, enhance safety and equipment longevity. With RS-485 (Modbus) communication and remote control support, this VFD simplifies integration into existing automation setups, enabling real-time monitoring and control.

Efficient Design and User-Friendly Interface

Featuring an intuitive 4-digit LED display and multi-language support, the MS300 is accessible for diverse users. Compact in size yet robust in performance, it is designed with user-defined cable length and versatile wall or panel mounting, ensuring straightforward installation and operation.

FAQ's of DELTA VFD MS300 VFD11AMS21ANSAA:

Q: How do I connect the DELTA VFD MS300 VFD11AMS21ANSAA to my automation system?

A: The MS300 VFD11AMS21ANSAA features an RS-485 (Modbus) communication port, allowing seamless integration with automation systems. Simply connect it to your controller or PLC using compatible wiring, and configure communication parameters as required.

Q: What types of motors are supported by this VFD?

A: This drive supports induction motors and permanent magnet synchronous motors, making it versatile for a wide range of industrial automation and motor control applications.

Q: When should I utilize the built-in braking unit feature?

A: The built-in braking unit is beneficial when fast deceleration of your motor is required, such as in applications involving rapid stop-and-start cycles or loads with high inertia.

Q: Where can the VFD be installed and what mounting options are available?

A: The VFD can be wall-mounted or panel-mounted, depending on your installation requirements. Its compact frame and IP20 rating make it suitable for electrical enclosures in industrial environments.

Q: What is the process for setting programmable inputs and outputs?

A: You can configure the six digital inputs, two analog inputs, two relay outputs, and one analog output via the user interface or through software, tailoring their functions to your specific process control or monitoring needs.

Q: How does the VFD ensure extended motor and drive protection?

A: The MS300 VFD offers multiple integrated protection functions including overvoltage, undervoltage, overcurrent, ground fault, overheat, and motor stall. These protections help prevent damage and extend equipment lifespan.

Q: What benefits does using this VFD provide for industrial applications?

A: Its energy-saving mode, precise vector/VF control, built-in PLC, safe torque off, and robust protection features enhance efficiency, safety, and operational cost savings in automation and motor control tasks.
