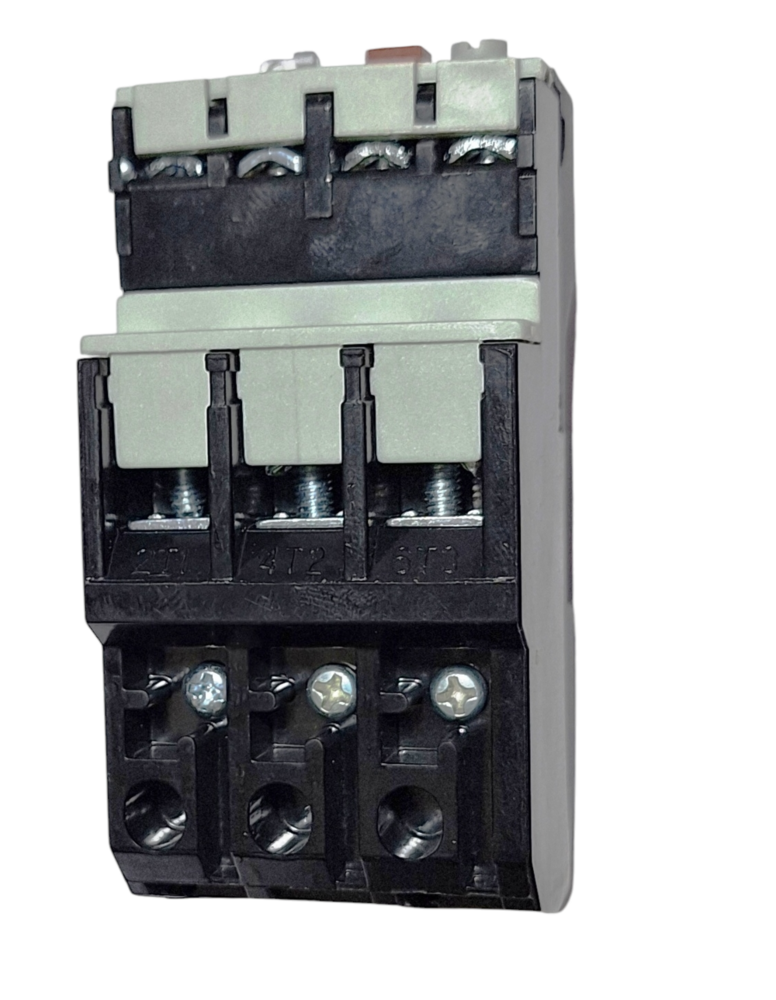

C&S OLR TR2D09306A A

Price 732.6 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S OLR TR2D09306A A Specification

Load Capacity
6A - 9A

Frequency
50/60 Hz

Automation Grade
Automatic

Features
Ambient temperature compensation, Trip indication panel, Manual/Automatic reset, Phase failure protection, Compact Design

IP Rating
IP20

Sensor Type
Thermal (Bimetallic Strip)

Application
Motor Protection

Control Type
Manual Reset

Phase
Three Phase

Remote Control
Yes

Weight
Approximately 130g

Connectivity Type
Panel Mounted

Mounting Type
Direct/Contactor Mounting

Material
Plastic Body

Temperature
-20°C to 70°C

Voltage
690V AC Maximum

Product Type
Thermal Overload Relay

Model Number
TR2D09306

Suitable For
CS D range Contactors

Current Adjustment Range
6 - 9A

Standard
IS/IEC 60947-4-1

Trip Class
Class 10A

Auxiliary Contacts
1NO + 1NC

About C&S OLR TR2D09306A A

Experience unassailable motor protection with the illustrious C&S OLR TR2D09306 - a top-rated, panel-mounted thermal overload relay engineered for dominance in challenging environments. Markdown pricing and a price cut make this high-performance relay an irresistible selection. With a robust plastic body, compliance with IS/IEC 60947-4-1 standards, and a current adjustment range of 6-9A, it ensures precise control. The design, including ambient temperature compensation and phase failure protection, demonstrates unmatched reliability for CS D range contactors. Ideal for manufacturers, distributors, and industrial suppliers across India.

Innovative Material, Usage Versatility, and Key Features

Crafted from a durable plastic body, the C&S OLR TR2D09306 is an illustrious choice for robust protection. Its compact design allows for seamless direct or contactor mounting, suiting diverse control panels. The thermal (bimetallic) sensor ensures adaptive performance with ambient temperature compensation, trip indication, and phase failure protection. Manual and automatic reset options further elevate its dominant position in motor safety, while its IP20 rating assures long-term reliability in demanding environments.

Swift Delivery, Flexible Payments, and Sample Availability

Benefit from fast shipping throughout the domestic market, with each C&S OLR TR2D09306 unit carefully packed and shipped upon order confirmation. Sale prices are available with secure payment terms tailored to buyers' needs. Ordering samples to evaluate product performance is straightforward, streamlining your procurement process. Whether you are a manufacturer, supplier, or trader, count on congenial business policies and prompt delivery, ensuring you never face operational delays.

FAQ's of C&S OLR TR2D09306AA :

Q: How does the C&S OLR TR2D09306 ensure motor protection in industrial applications?

A: The relay features a thermal bimetallic strip sensor for precise overload detection, ambient temperature compensation, phase failure protection, and trip indication-safeguarding motors from damage and ensuring reliable operation.

Q: What is the current adjustment range and for which contactors is it suitable?

A: The current adjustment range is 6-9A, making it compatible with CS D range contactors for optimal panel integration and flexibility in various installations.

Q: When can I expect delivery after placing an order for the C&S OLR TR2D09306?

A: Once an order is confirmed, units are shipped promptly within the domestic market. Expected delivery times vary by location, but processing is rapid to minimize downtime.

Q: Where is the relay usually installed in motor control setups?

A: This relay is panel-mounted and can be directly installed on contactors, fitting seamlessly into most industrial control panels for three-phase systems.

Q: What are the benefits of using the C&S OLR TR2D09306 in my electrical installation?

A: Users benefit from reliable, unassailable motor protection, adjustable current settings, and features such as manual/auto reset and phase failure protection-contributing to safe, efficient operations.
