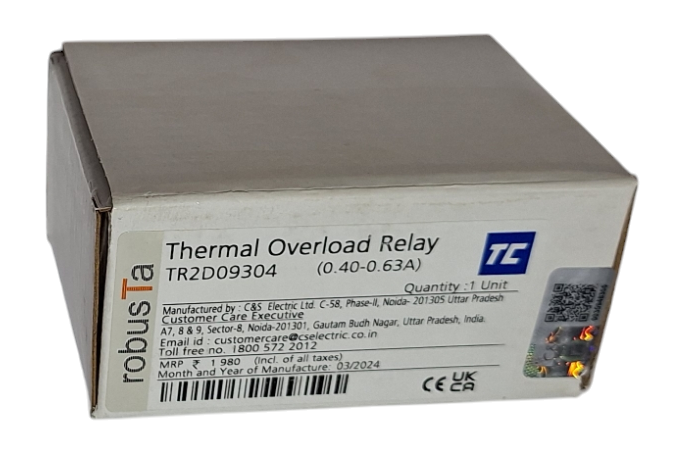

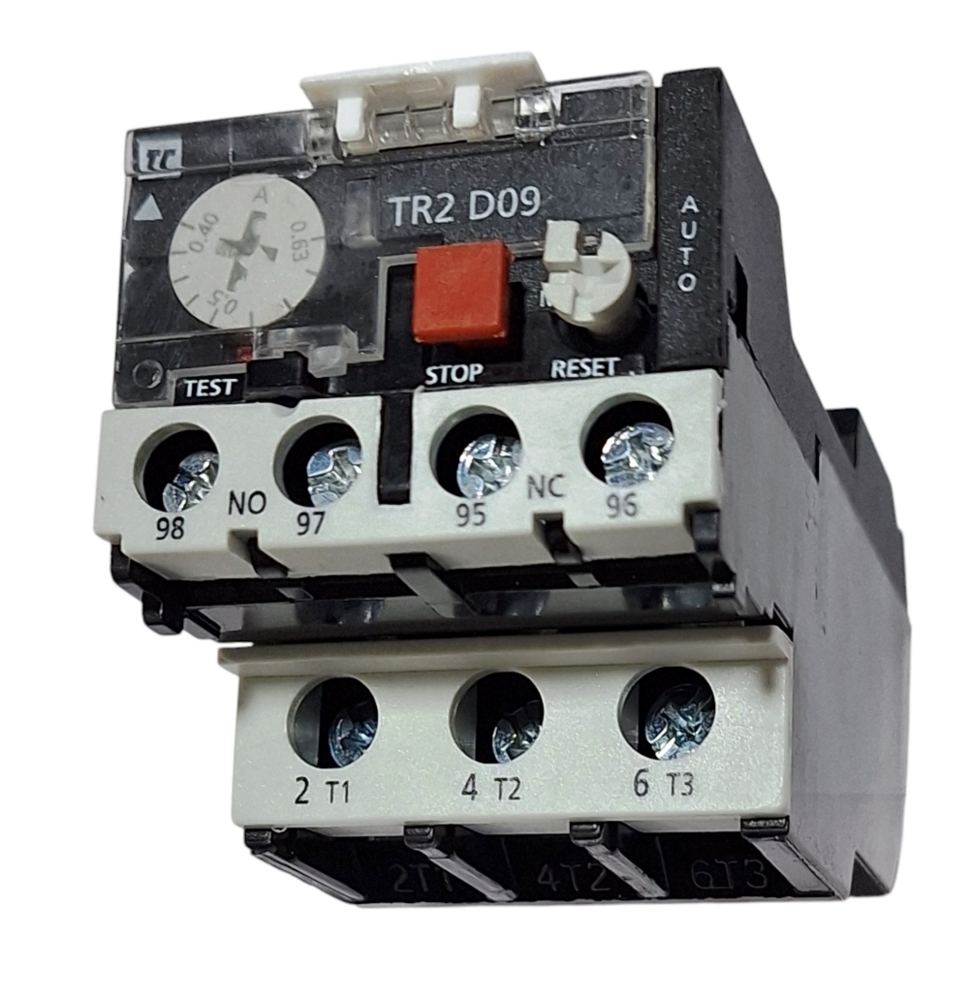

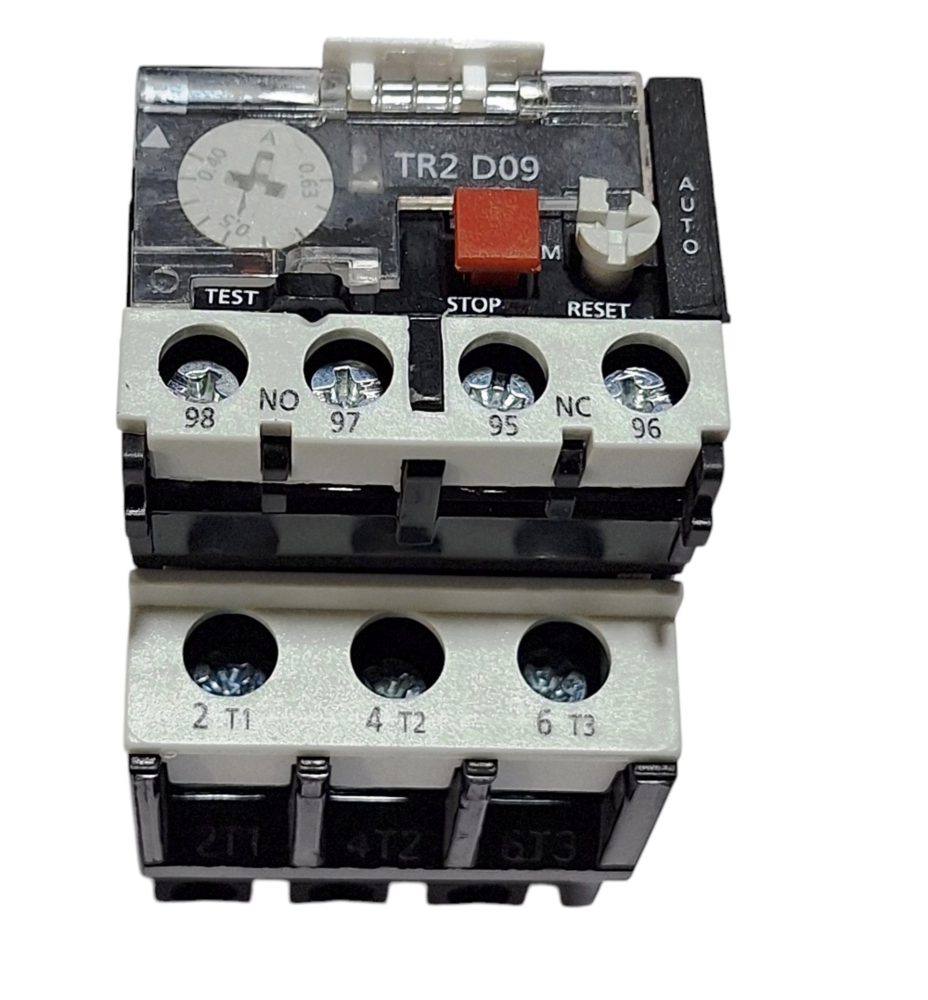

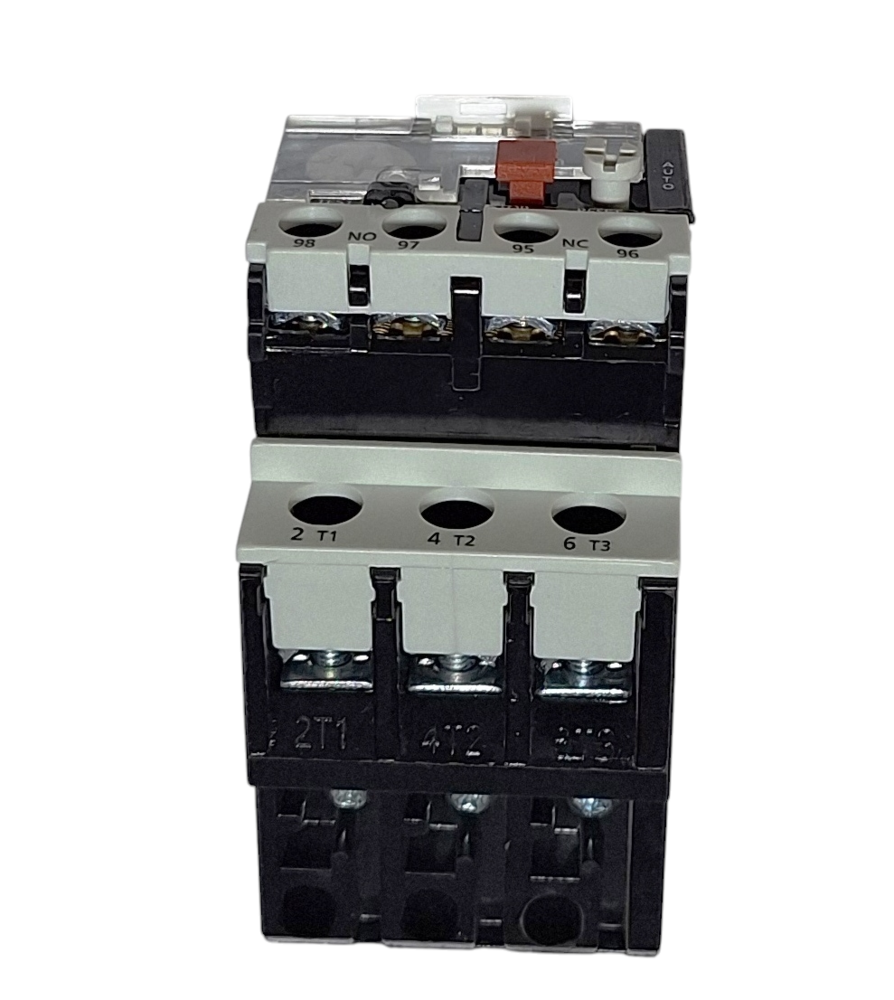

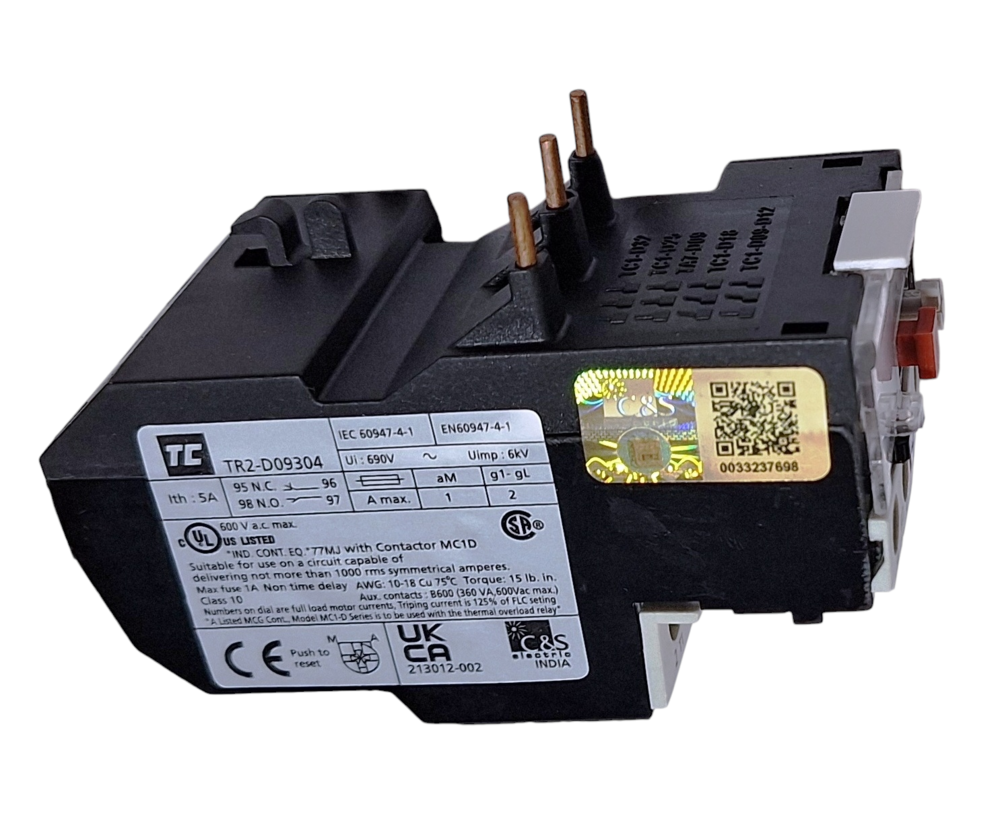

C&S OLR TR2D09304

Price 732.6 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S OLR TR2D09304 Specification

Remote Control
Yes

Phase
Three Phase

Sensor Type
Thermal Bi-metallic

Connectivity Type
Direct Mount

Control Type
Thermal

Application
Motor Protection

Mounting Type
Direct/DIN Rail

Load Capacity
0.63-1.0A, 0.9-1.3A, 1.25-1.8A, 1.7-2.5A, 2.4-4.0A (adjustable)

Frequency
50/60 Hz

Weight
Approx. 0.15 kg

IP Rating
IP20

Features
Manual/Auto Reset, Trip Class 10A, Test Button, High Accuracy

Automation Grade
Semi-Automatic

Material
Plastic and Metal

Power
Up to 3 HP

Temperature
-20C to +60C

Voltage
415 V AC

Standards Compliance
IS/IEC 60947-4-1

Operating Current Range
0.63 - 4.0A

Auxiliary Contacts
1NO + 1NC

Type
Overload Relay

Ambient Temperature Rating
-20°C to +60°C

Trip Class
10A

Frame Size
TR2D

Reset Type
Manual/Auto

Insulation Voltage
690 V

Model Number
TR2D09304

About C&S OLR TR2D09304

Introducing the astounding C&S OLR TR2D09304 Overload Relay, a cost-effective solution that provides astonishing protection for your three-phase motors. Featured with high accuracy, manual/auto reset, and a test button, this product aligns with IS/IEC 60947-4-1 standards. Its towering performance covers a current range of 0.63 - 4.0A, with adjustable load capacity and direct or DIN rail mounting. Engineered with durable plastic and metal, it boasts an IP20 rating and operates seamlessly from -20C to +60C, making it ideal for modern motor protection. Add to Cart for unparalleled value, whether you are a distributor or supplier across India.

Versatile Application and Usage

The C&S OLR TR2D09304 is designed for both specific and general use in industrial and commercial settings. It's highly suitable for protecting motors in manufacturing plants, HVAC systems, and automated processing lines. Application areas extend to motor protection, overload safety, and control panels, ensuring both reliability and safety in demanding environments. This model accommodates various installation needs with options for direct or DIN rail mounting, making it an excellent choice for diverse electrical setups.

Sample Availability and Valuation Details

C&S OLR TR2D09304 samples can be requested to help your business assess suitability before a larger expenditure. The product is available at a competitive sale price, optimizing valuation for both bulk and single purchases. Shipments are dispatched via major FOB ports, supporting smooth logistics. Fully compliant with recognized certifications, this overload relay guarantees performance and reliability, boosting your confidence in each procurement. Place your orders to experience the cost benefits and high standards firsthand.

FAQ's of C&S OLR TR2D09304:

Q: How does the C&S OLR TR2D09304 enhance motor protection?

A: The C&S OLR TR2D09304 protects motors by sensing overloads with its thermal bi-metallic sensor and tripping automatically to prevent damage, thereby extending motor lifespan and reducing downtime.

Q: What is the operating current range for this overload relay?

A: The operating current range for the C&S OLR TR2D09304 is adjustable from 0.63A to 4.0A, making it versatile for various motor sizes and applications.

Q: Where can the C&S OLR TR2D09304 be installed?

A: This relay is suitable for direct and DIN rail mounting, allowing installation in control panels, industrial automation systems, and general motor control setups.

Q: What certifications and standards does the product comply with?

A: The relay complies with IS/IEC 60947-4-1 standards, ensuring reliable performance and adherence to international electrical safety requirements.

Q: When is it advisable to use the manual and auto reset functions?

A: The manual reset should be used for careful system inspections post-trip, while auto reset is ideal when convenience and minimal downtime are priorities-all depending on the application's safety protocol.

Q: How can potential buyers obtain a sample for evaluation?

A: Interested buyers can request samples of the C&S OLR TR2D09304 through authorized distributors or suppliers, allowing for practical assessment before making a purchasing decision.
