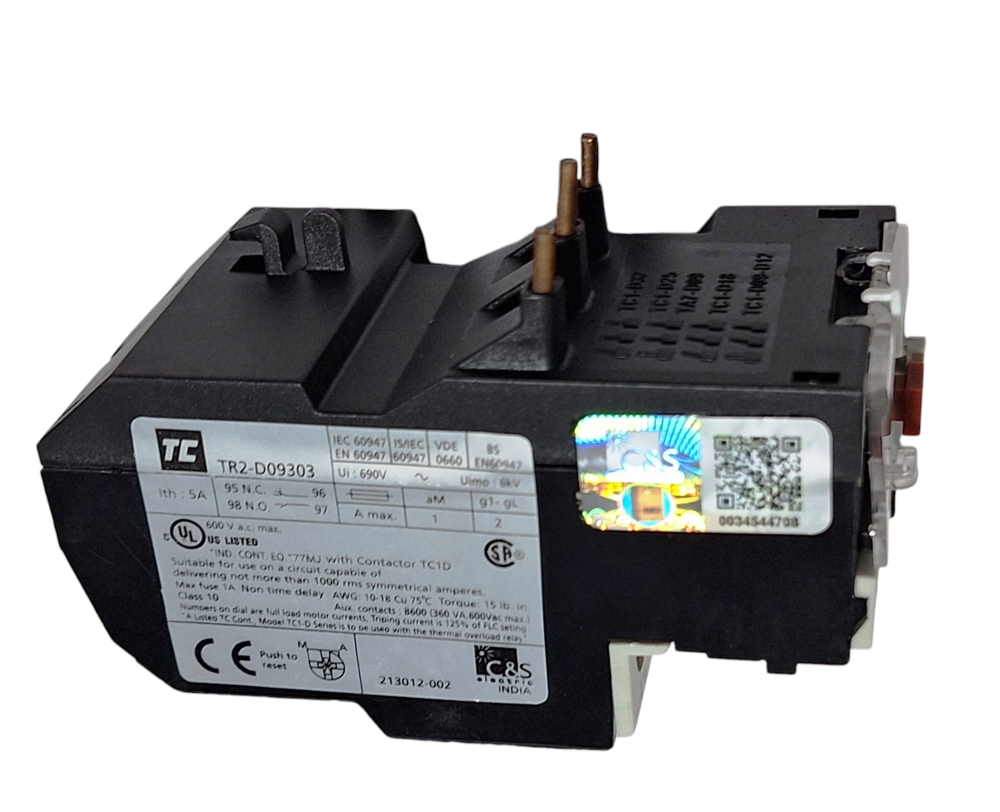

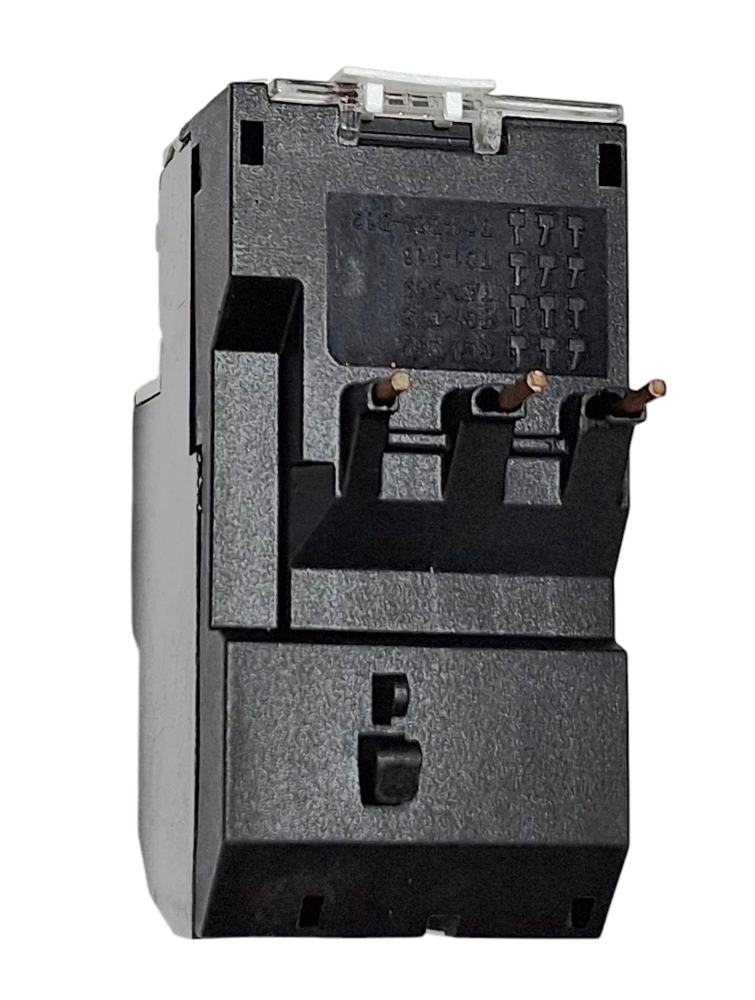

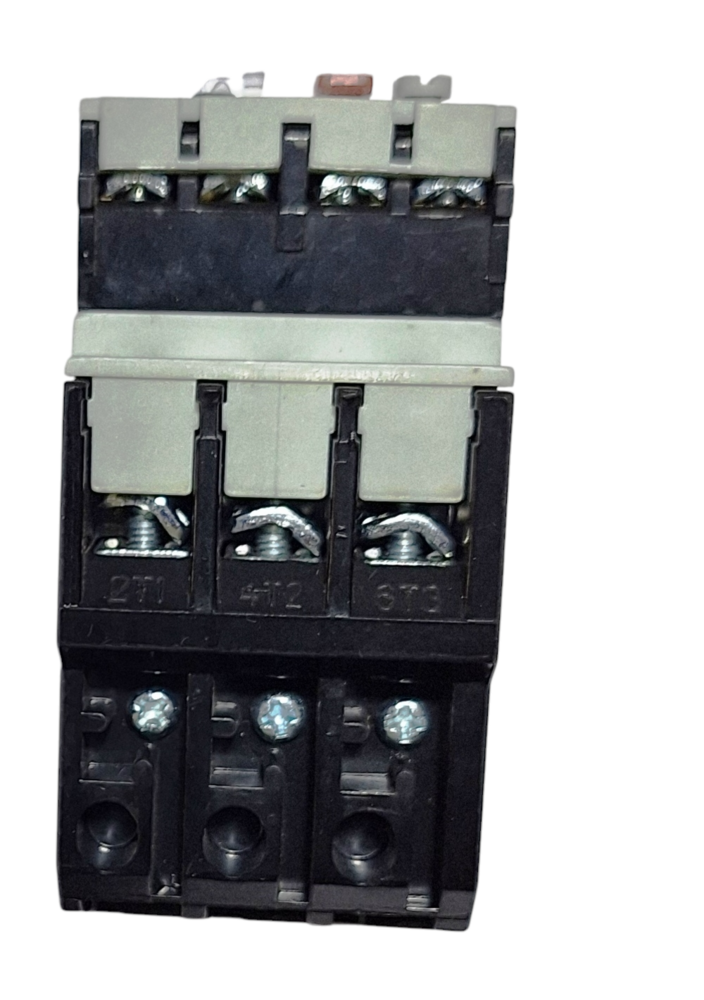

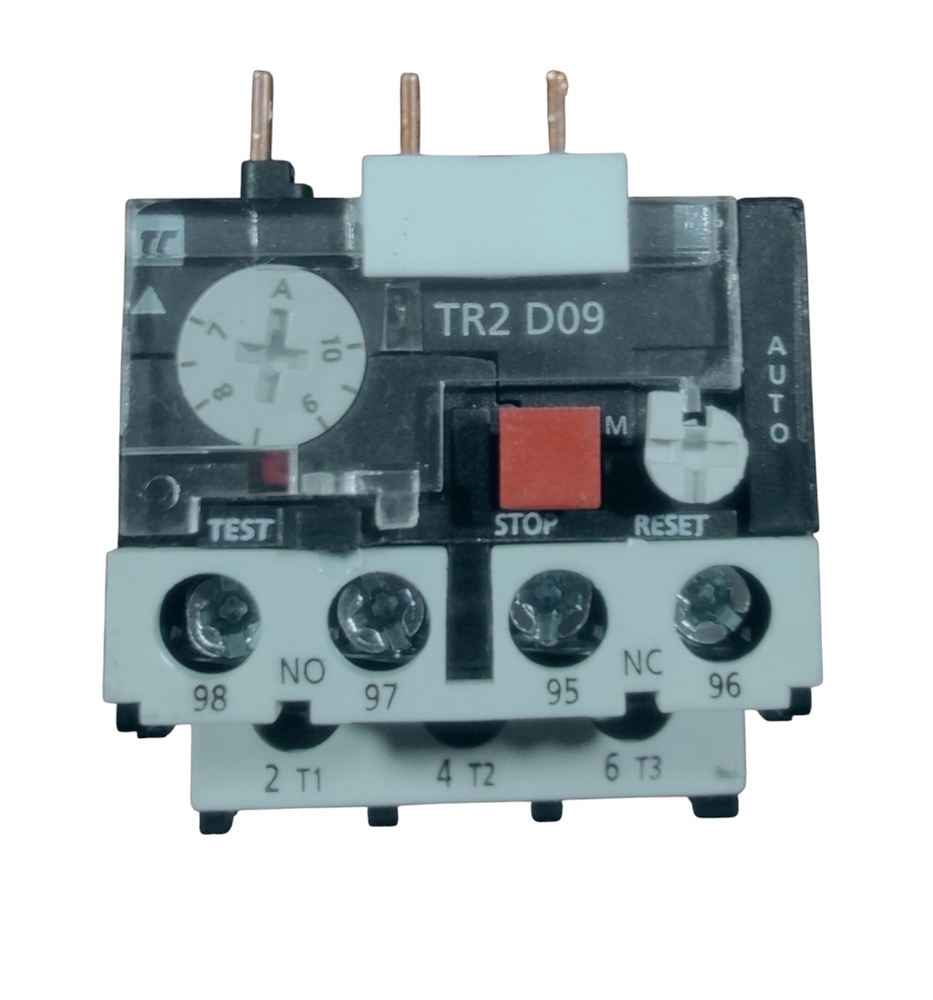

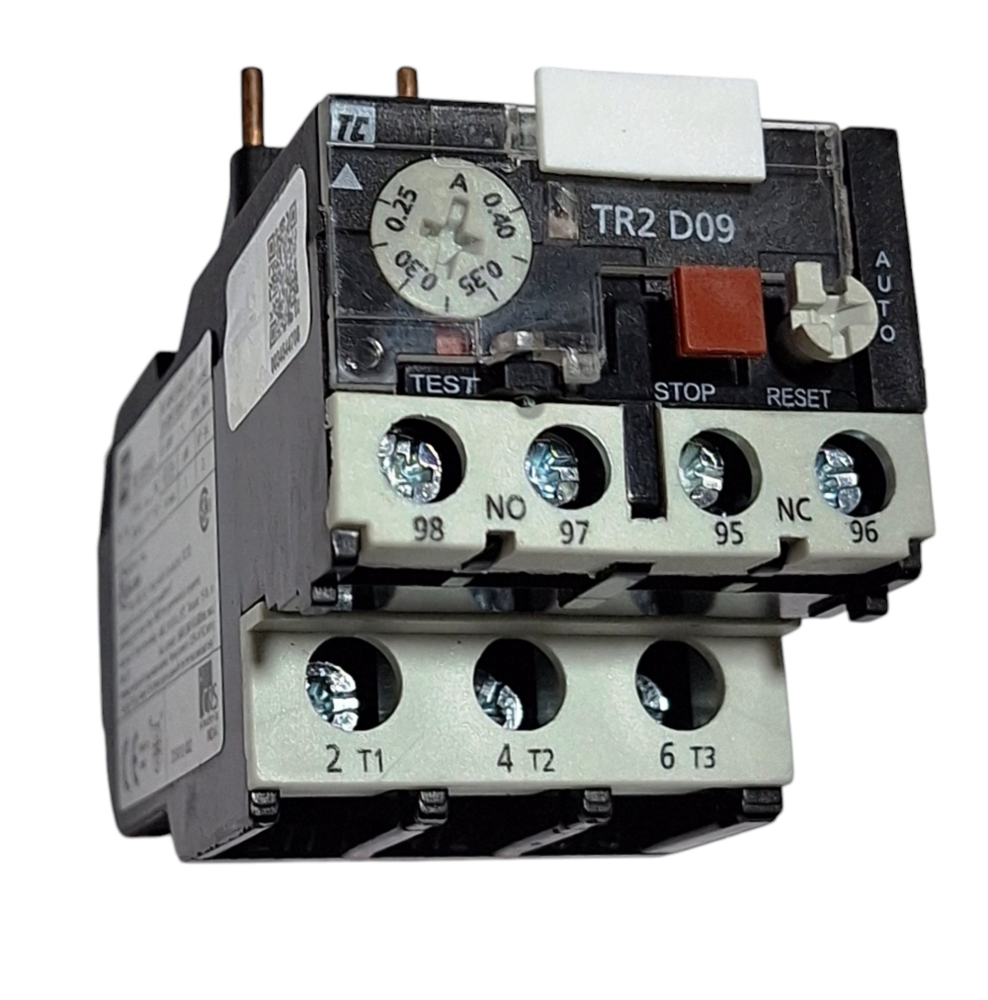

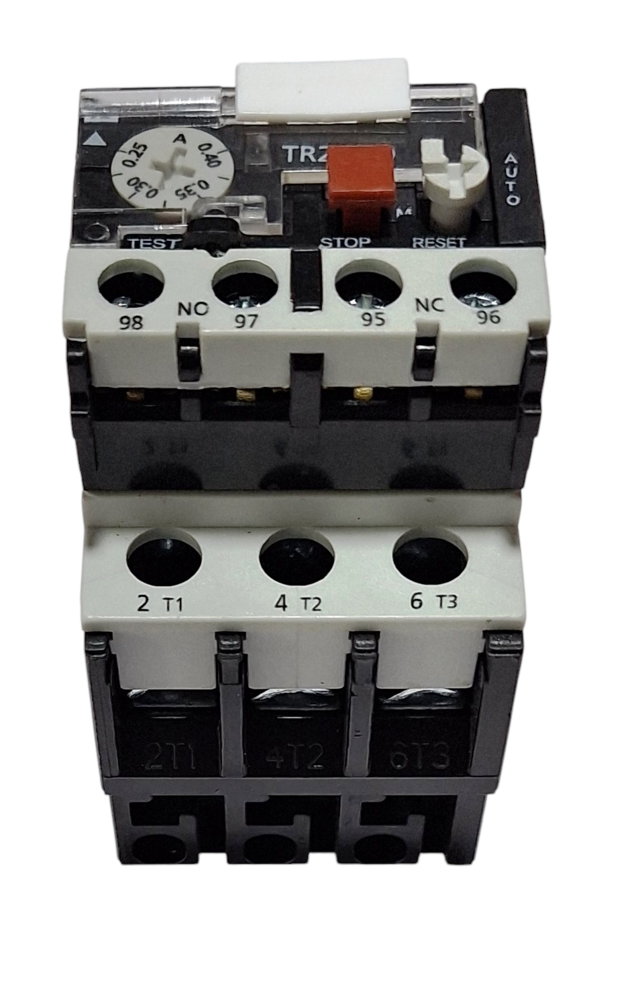

C&S OLR TR2D09303

Name: C&S OLR TR2D09303
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 732.6 INR
Availability: InStock

Price 732.6 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S OLR TR2D09303 Specification

Weight
Approx 250g

Remote Control
Yes

Automation Grade
Automatic

Load Capacity
0.63-1.0A

Mounting Type
Direct or Separate Mounting

Application
Motor Protection

Control Type
Thermal

Frequency
50/60 Hz

IP Rating
IP20

Features
Phase Failure Protection, Overload Protection, Adjustable Current Setting, Manual/Auto Reset

Sensor Type
Thermal Relay

Connectivity Type
Panel Mounted

Phase
Three Phase

Material
Plastic and Metal

Power
Up to 7.5 HP

Temperature
-5°C to +55°C

Voltage
690V AC Max

Auxiliary Contact Rating
AC-15 230V/3A, DC-13 24V/2A

Reset Type
Manual & Automatic

Model
OLR TR2D09303

Ambient Temperature
-5°C to +55°C

Suitable for
DOL & Star-Delta Starters

Tripping Class
Class 10A

Number of Poles
3 Pole

Storage Temperature
-40°C to +70°C

Dimensions
44.5mm (W) × 70mm (H) × 70mm (D)

Conformity Standard
IS/IEC 60947-4-1

C&S OLR TR2D09303 About

Experience success with the scarce and trending C&S OLR TR2D09303, an uncommon motor protection relay designed to command attention in demanding industrial environments. Featuring an astounding blend of manual and automatic reset capabilities, the special three-pole construction meets the IS/IEC 60947-4-1 standard for uncompromising reliability. Rated for up to 7.5 HP motors and offering thermal protection across DOL and Star-Delta starters, this robust device excels in voltage endurance (690V AC Max) and precise overload protection. With an adjustable current setting (0.63-1.0A), phase failure safeguards, and an IP20 rating, the OLR TR2D09303 truly stands apart.

Competitive Advantages & Applications

The C&S OLR TR2D09303 offers commanding phase failure and overload protection, making it an ideal choice for motor protection across various industries. Its astounding adaptability suits DOL and Star-Delta starters, with flexible mounting options. Widely used in panel installations and industrial automation, this relay supports Automatic and Manual reset modes, ensuring both safety and operational continuity. As a distributor, manufacturer, and supplier, it's especially valued for its reliability and special performance in India's competitive market.

Certifications, Payment Terms & Supply Ability

Conforming to the IS/IEC 60947-4-1 standard, the C&S OLR TR2D09303 offers a certified, export-ready solution for global distribution. Delivery schedules and quotations are flexible, tailored to meet customer requirements. Payment terms are streamlined to support both domestic and export market orders. Reliable supply ability ensures prompt fulfillment, making bulk purchases efficient for distributors, traders, and manufacturers seeking a commanding edge in their offerings.

FAQ's of C&S OLR TR2D09303:

Q: How does the C&S OLR TR2D09303 provide protection for motors?

A: The device uses temperature-sensitive thermal technology to detect overloads and phase failures, quickly tripping the circuit to prevent motor damage and downtime.

Q: What are the primary applications of the C&S OLR TR2D09303?

A: It is primarily used for motor protection in Direct On Line (DOL) and Star-Delta starter systems, ideal for panel mounting in industrial automation and manufacturing setups.

Q: When should the adjustable current setting be used?

A: The adjustable current setting is beneficial when tailoring the relay to specific motor requirements, ensuring optimal protection according to the appraised load conditions.

Q: Where can the relay be mounted?

A: This thermal relay supports both separate and direct mounting, facilitating easy installation within control panels or alongside starters as required.

Q: What certifications ensure the reliability of the C&S OLR TR2D09303?

A: It conforms to the IS/IEC 60947-4-1 standard, guaranteeing safety and performance for industrial use according to global quality benchmarks.

Q: How does ordering and delivery work for export markets?

A: Quotations and delivery schedules are customized for export orders, ensuring efficient fulfillment and competitive payment terms to suit international clients.
