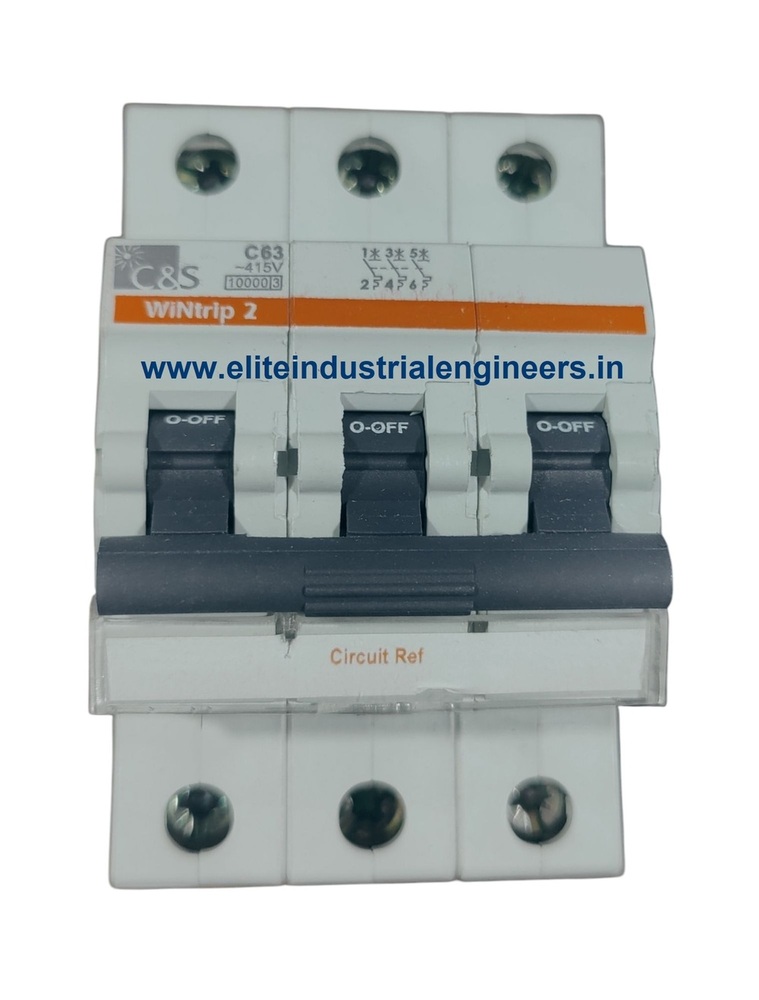

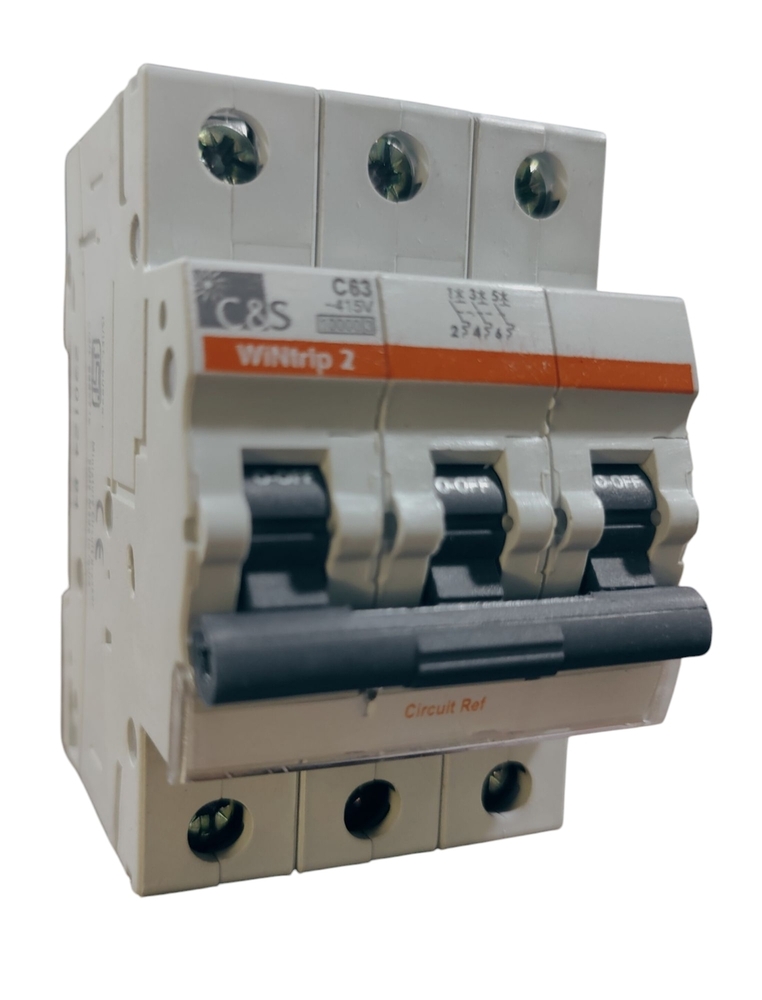

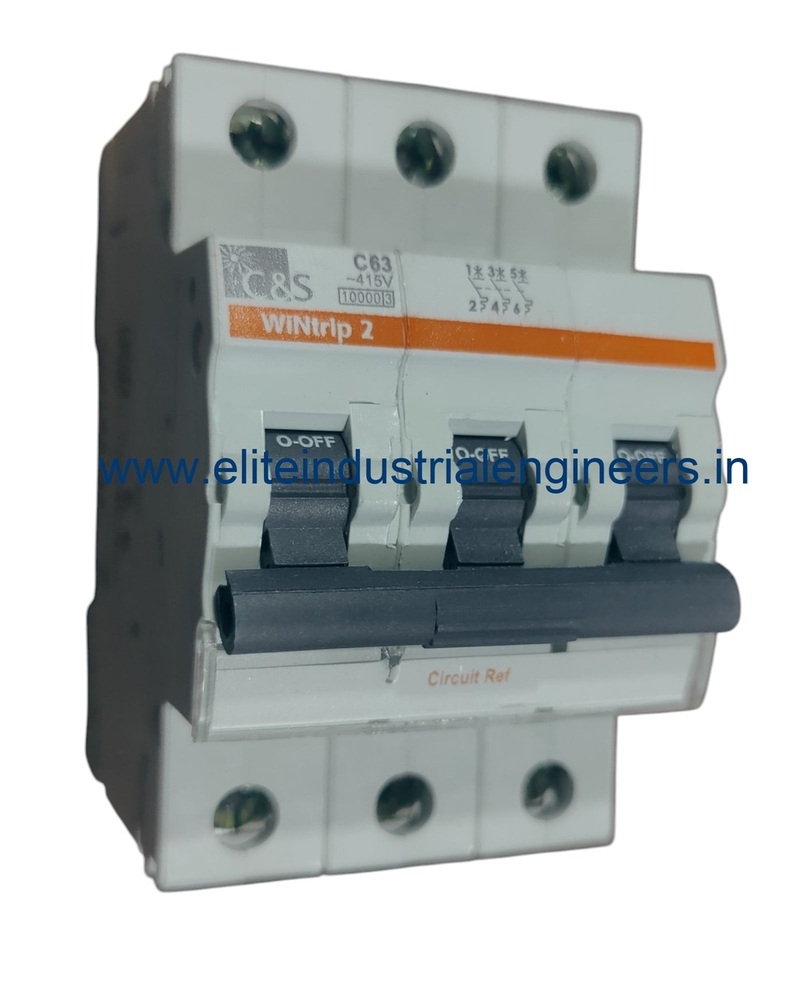

C&S MCB CSMBS3C63NR04 TP 63A

Name: C&S MCB CSMBS3C63NR04 TP 63A
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 914 INR
Availability: InStock

Price 914 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S MCB CSMBS3C63NR04 TP 63A Specification

Connectivity Type
DIN Rail Mounted

Features
ISI Marked, High Short Circuit Breaking Capacity, Trip-Free Mechanism, Compact Design

Application
Low Voltage Circuit Protection for Industrial and Commercial Installations

Frequency
50Hz

Load Capacity
63A Maximum

Remote Control
Yes

Control Type
Lever Operated

IP Rating
IP20

Phase
Three Phase

Automation Grade
Manual

Mounting Type
DIN Rail

Weight
Approx. 350g

Material
Thermoset Plastic, High-Grade Copper Parts

Power
63A (Ampere) Rated

Temperature
-5°C to +55°C Operating Range

Voltage
415V AC

Standard
IS/IEC 60898-1 Certified

Terminal Type
Screw type, 35mm2 max conductor size

Number of Poles
Triple Pole (TP)

Tripping Curve
C Curve

Breaking Capacity
10kA

Product Code
CSMBS3C63NR04

Housing Color
White and Blue

About C&S MCB CSMBS3C63NR04 TP 63A

Purchase the exclusive C&S MCB CSMBS3C63NR04 TP 63Aan uncommon solution for spectacular low voltage circuit protection in industrial and commercial installations. Unlock polished performance with its IS/IEC 60898-1 certification, triple pole design, and exceptional 10kA breaking capacity. Equipped with a robust C Curve tripping function, manual lever control, and high-grade copper parts, this MCB ensures reliable, trip-free protection. The compact housing in white and blue thermoset plastic delivers durability, while DIN rail mounting simplifies installation. Experience high efficiency, safety, and maximum connectivity with every use; available for distribution and supply across India.

Directions and Applications for Optimal Usage

Install the C&S MCB CSMBS3C63NR04 TP 63A on a DIN rail in industrial or commercial panel boards designed for three-phase power. Its surface is optimized for secured mounting via screw-type terminals, accommodating up to 35mm conductors. Usage revolves around manual lever operation, ensuring efficient overload and short-circuit protection in low voltage circuits. For best results, engage the unit within compatible operational temperature and voltage limits, maximizing safety and efficiency in demanding environments.

Sample Availability, Packaging, and Domestic Market Support

Experience reliability with sample units of C&S MCB CSMBS3C63NR04 TP 63A available for exchange and evaluation before order completion. The product is meticulously packaged to ensure express shipping and integrity upon arrival. With dedicated distribution and supply across major domestic markets in India, customers benefit from comprehensive post-sales support and seamless order processing. The manufacturer and suppliers guarantee prompt service, making your purchase effortless and efficient.

FAQs of C&S MCB CSMBS3C63NR04 TP 63A:

Q: How do I install the C&S MCB CSMBS3C63NR04 TP 63A in my facility?

A: To install, securely mount the MCB onto a standard DIN rail within your distribution board, ensuring the screw-type terminals are attached to compatible conductors up to 35mm. Always follow safety standards and manufacturers instructions for optimal performance.

Q: What is the primary application of this triple pole MCB unit?

A: This device provides low voltage circuit protection in industrial and commercial settings, safeguarding three-phase electrical systems against overloads and short circuits.

Q: When can I expect to receive my order through express shipping?

A: Orders are processed efficiently, and with express shipping availability, you typically receive your completed order within the stipulated delivery times after confirmation and packaging.

Q: Where is the C&S MCB CSMBS3C63NR04 TP 63A mainly distributed?

A: This MCB is primarily distributed, supplied, and traded across various regions in India, ensuring accessibility to buyers in major domestic markets.

Q: What process is followed for sample exchange and evaluation?

A: You can request a sample unit for evaluation through the supplier or distributor. Samples are provided in secure packaging and may be exchanged or reviewed prior to final order completion to ensure suitability for your application.

Q: How does manual lever operation benefit user control and safety?

A: Manual lever-operated control provides precise tripping and resetting of the circuit breaker, enhancing user intervention, flexibility, and immediate response during fault conditions.
