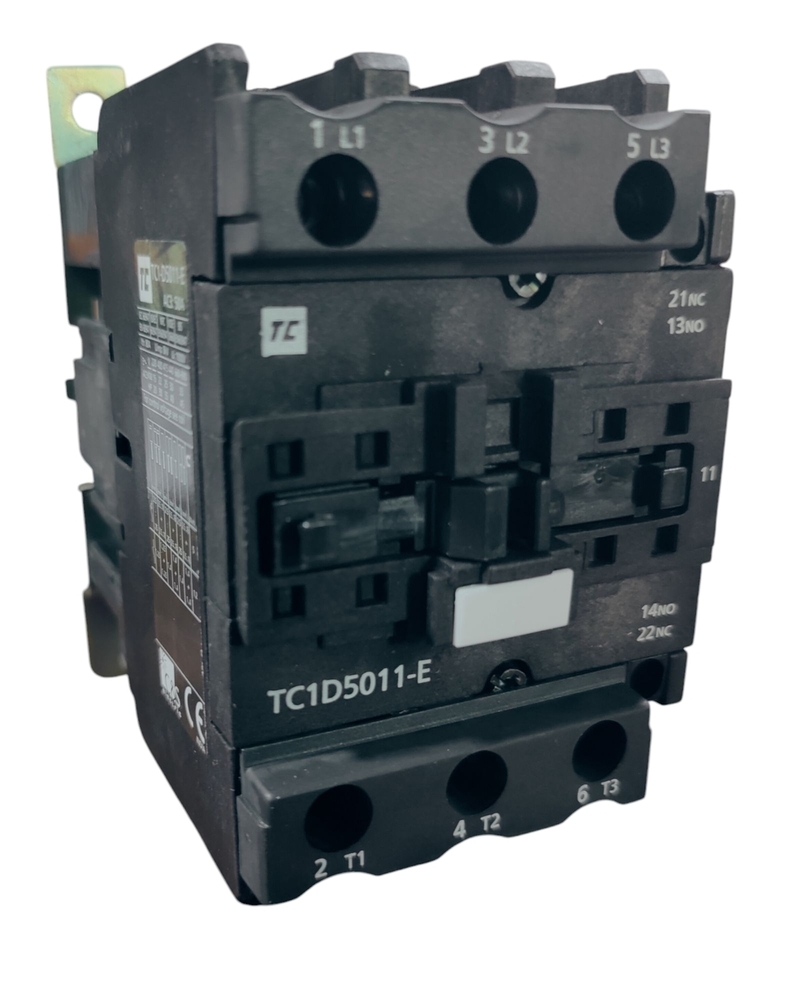

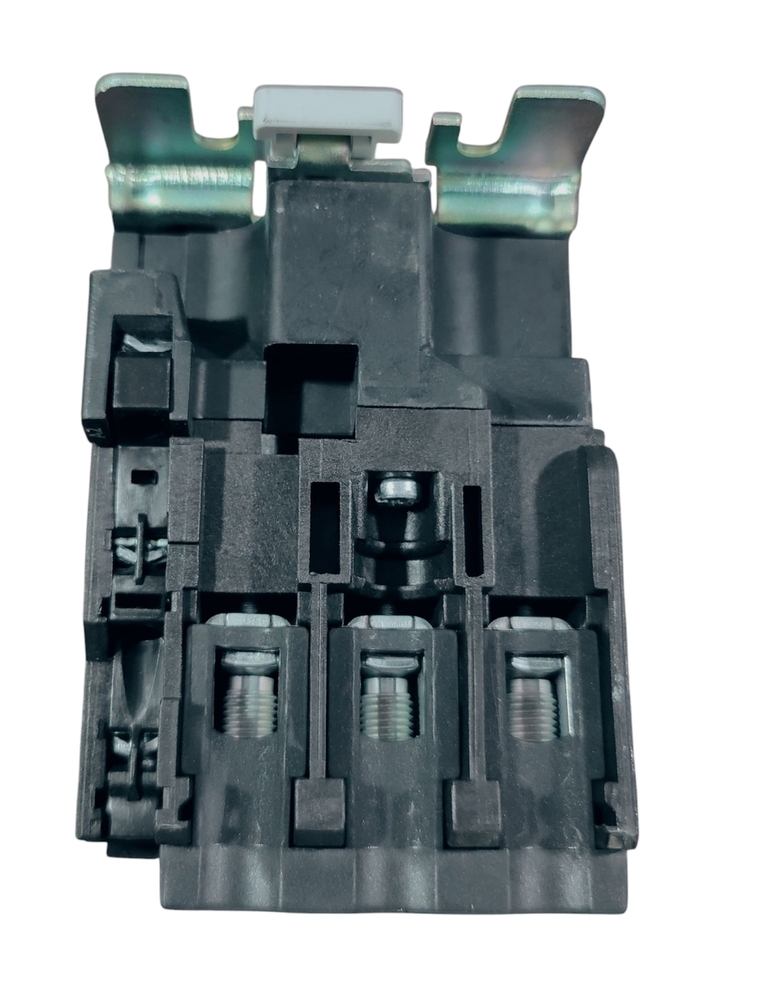

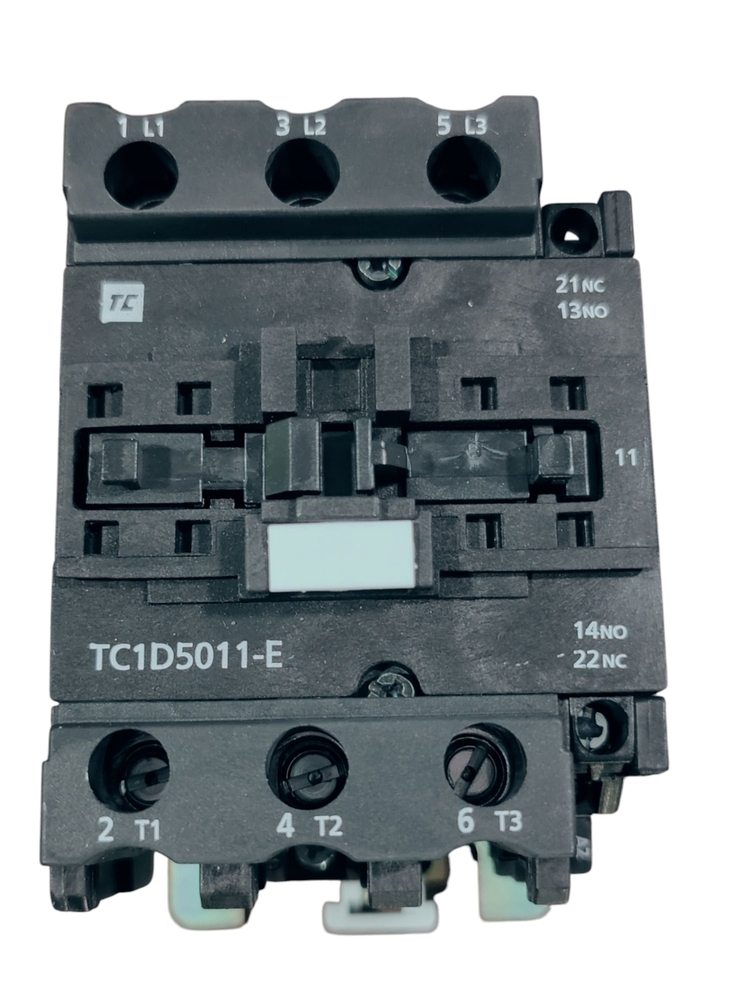

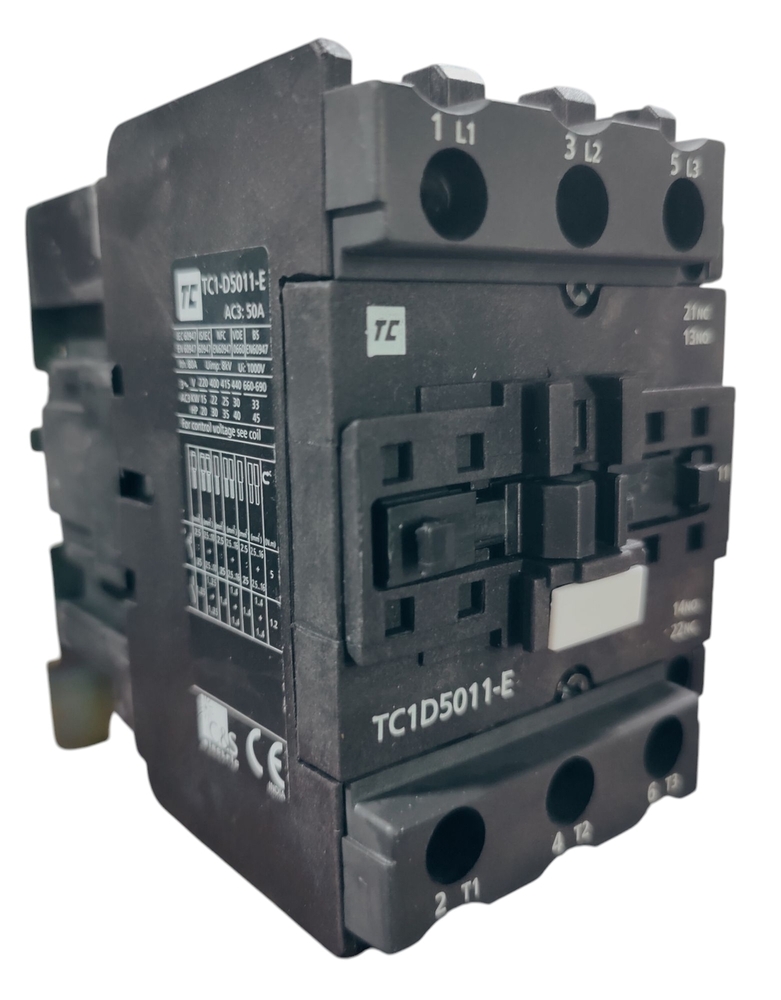

C&S CONTACTOR TC1D5011EM5

Price 3500.2 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S CONTACTOR TC1D5011EM5 Specification

Phase
Three Phase

Load Capacity
50A rated current

Cable Length
Dependent on installation

Control Type
Electromagnetic

Remote Control
Yes

Features
High Mechanical Endurance, Compact Size, Easy Wiring

Connectivity Type
Screw Terminal

Application
Motor Control, Power Switching

Weight
Approx. 1.1 kg

Automation Grade
Automatic

Frequency
50/60 Hz

IP Rating
IP20

Mounting Type
DIN Rail / Panel Mountable

Material
High-grade thermoplastic and electro-galvanized steel

Power
22 kW (AC3) at 400V

Temperature
-5°C to +55°C (operating)

Voltage
415V AC, 50Hz

Insulation Voltage
690V

Auxiliary Contact Block
Optional, can be fitted

Short Circuit Protection
Must be connected with proper short circuit/protection devices

Coil Voltage
110V AC (other variants available)

Mechanical Life
10 Million operations

Electrical Life
1 Million operations (AC3)

Ambient Storage Temperature
-40°C to +70°C

Standards Compliance
IEC 60947-4-1

Contact Configuration
3NO+1NC

About C&S CONTACTOR TC1D5011EM5

Experience the elite precision of the C&S CONTACTOR TC1D5011EM5, crafted for superlative performance in demanding motor control and power switching applications. With a rare combination of lofty specifications like 10 million mechanical operations and 1 million electrical (AC3) life, it guarantees durability. Its high-grade thermoplastic and electro-galvanized steel construction ensures reliability. Rated for 50A and 22 kW (AC3), this automatic three-phase electromagnetic contactor provides best price and last chance availability for your industrial requirements. Compliance with IEC 60947-4-1, IP20 protection, and easy DIN Rail or panel mounting make it the preferred choice for distributors, suppliers, and manufacturers across India.

Elite Use Performance & Versatile Applications

The C&S CONTACTOR TC1D5011EM5 excels in both automation and motor control, making it perfect for power switching in industrial environments. Its mechanical endurance supports high-frequency operations while compact dimensions enable flexible installation. Key features include a robust electromagnetic control, easy wiring, and compatibility with screw terminals. Operating across a wide voltage range, it is ideal for seamless integration in automated setups, offering reliable performance and safety for advanced applications.

Sample Access, Transparent Payment Terms, and Reliable Transport

Get samples of the C&S CONTACTOR TC1D5011EM5 to evaluate its functionality. Payment terms are clear, ensuring a smooth transaction process, and goods transport is managed efficiently to your location. The list price reflects the product's superlative quality. Packaging is secure for safe delivery. Available throughout India, the main domestic market benefits from swift distribution and reliable supply, whether sourced from trusted manufacturers, suppliers, or authorized distributors.

FAQ's of C&S CONTACTOR TC1D5011EM5:

Q: How should the C&S CONTACTOR TC1D5011EM5 be installed for optimal performance?

A: The C&S CONTACTOR TC1D5011EM5 can be mounted on DIN rails or panel setups, ensuring secure installation. Use screw terminals for easy wiring, and always connect proper short circuit or protection devices for safety.

Q: What operational benefits does the TC1D5011EM5 provide in motor control applications?

A: This contactor offers high mechanical endurance, with up to 10 million operations and 1 million operations under AC3 load, supporting frequent use in demanding motor control and automatic power switching environments.

Q: When is it recommended to add an auxiliary contact block to this contactor?

A: Auxiliary contact blocks are optional and should be fitted when additional signaling or control features are needed in your application, enabling enhanced communication and interface flexibility.

Q: Where can I obtain samples or purchase the C&S CONTACTOR TC1D5011EM5?

A: Samples and finished units are available across India through authorized distributors, manufacturers, and suppliers. Enquire directly to receive product samples for evaluation before bulk procurement.

Q: What is the process for securing goods transport and delivery in India?

A: The product is securely packaged and shipped via reliable transport partners, ensuring timely and safe delivery to your specified location, with all logistics supported by the supplier or distributor.

Q: Is the contactor suitable for various installation conditions and media?

A: Yes, its insulation voltage of 690V and ambient operating/storage temperatures range from -40C to +70C, making it suitable for a broad set of environments and media used in industrial automation.
