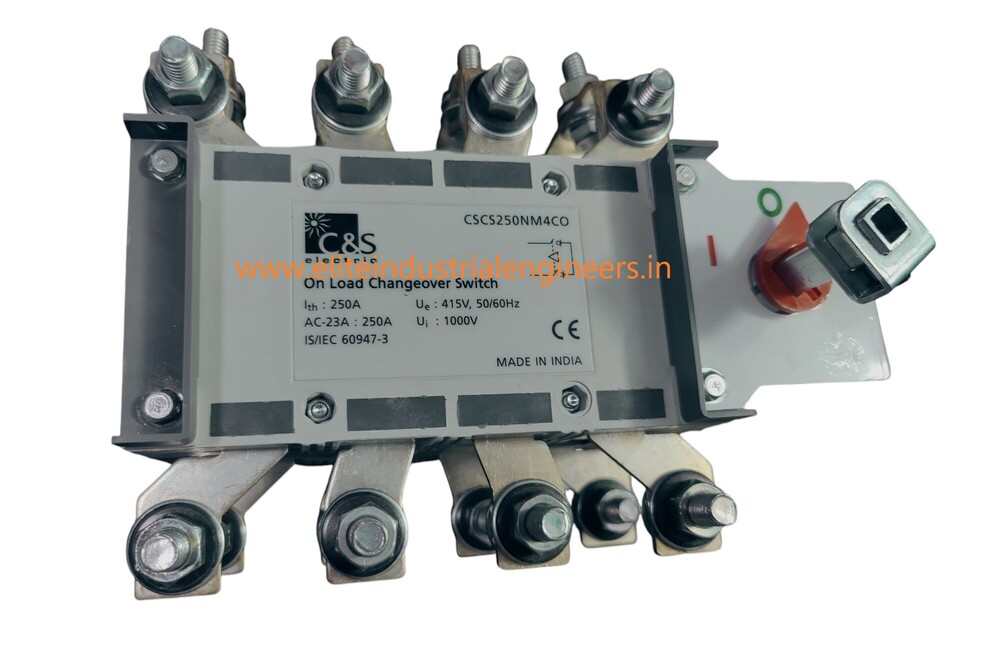

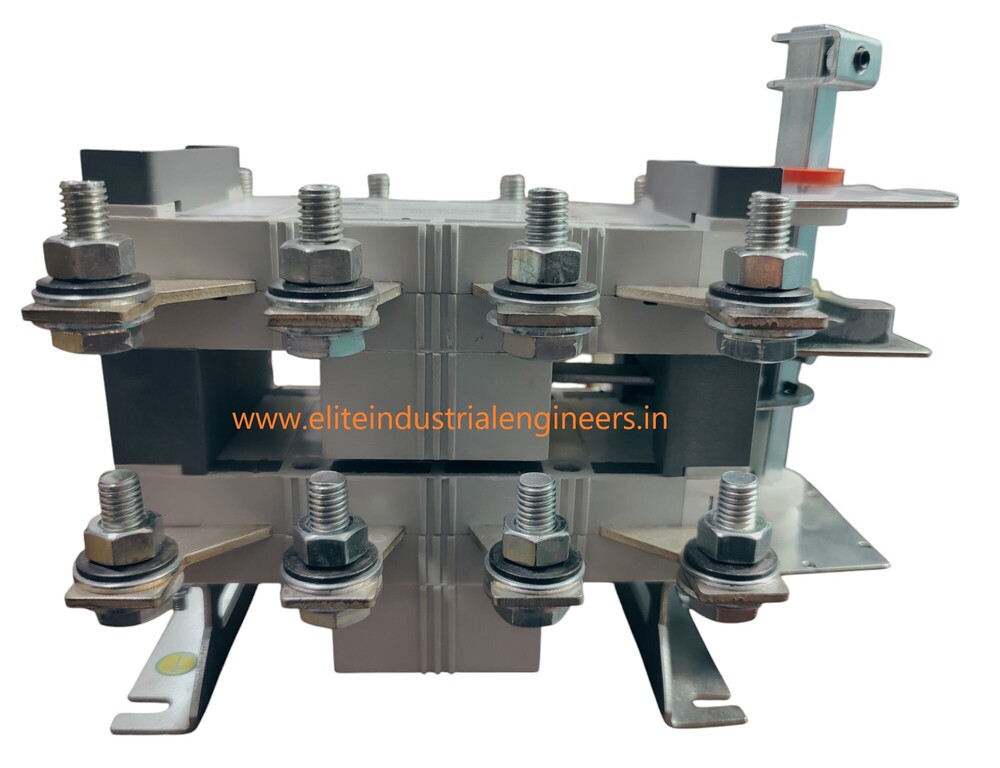

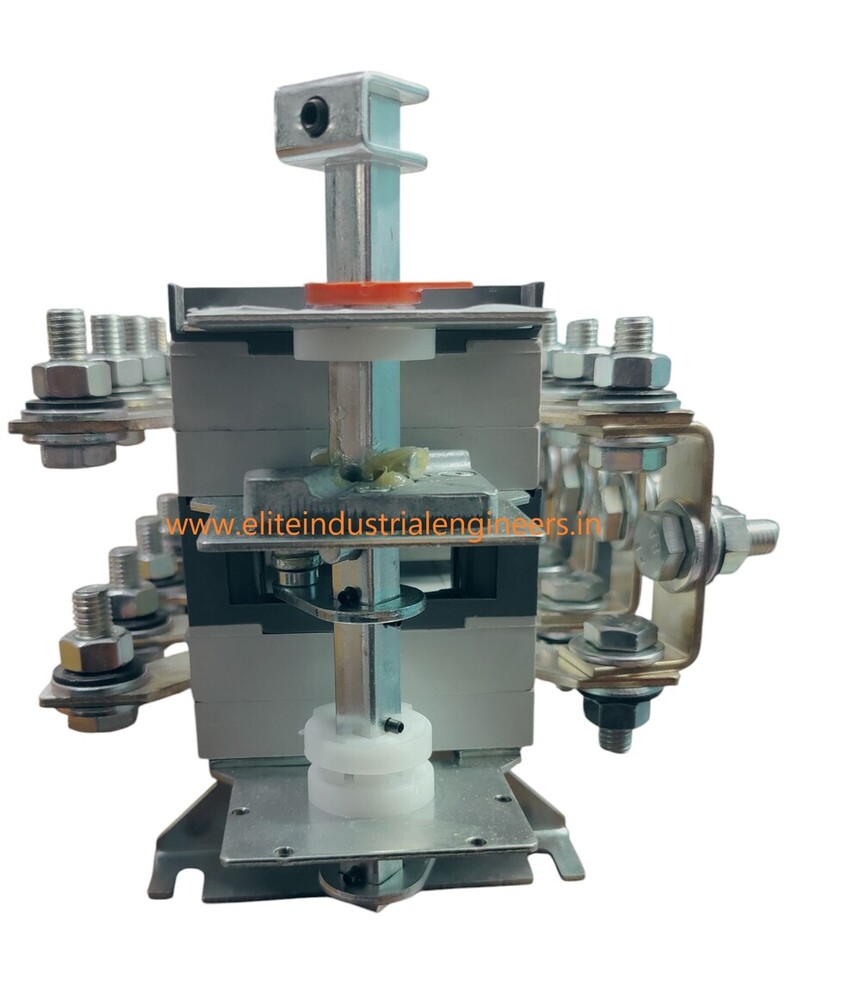

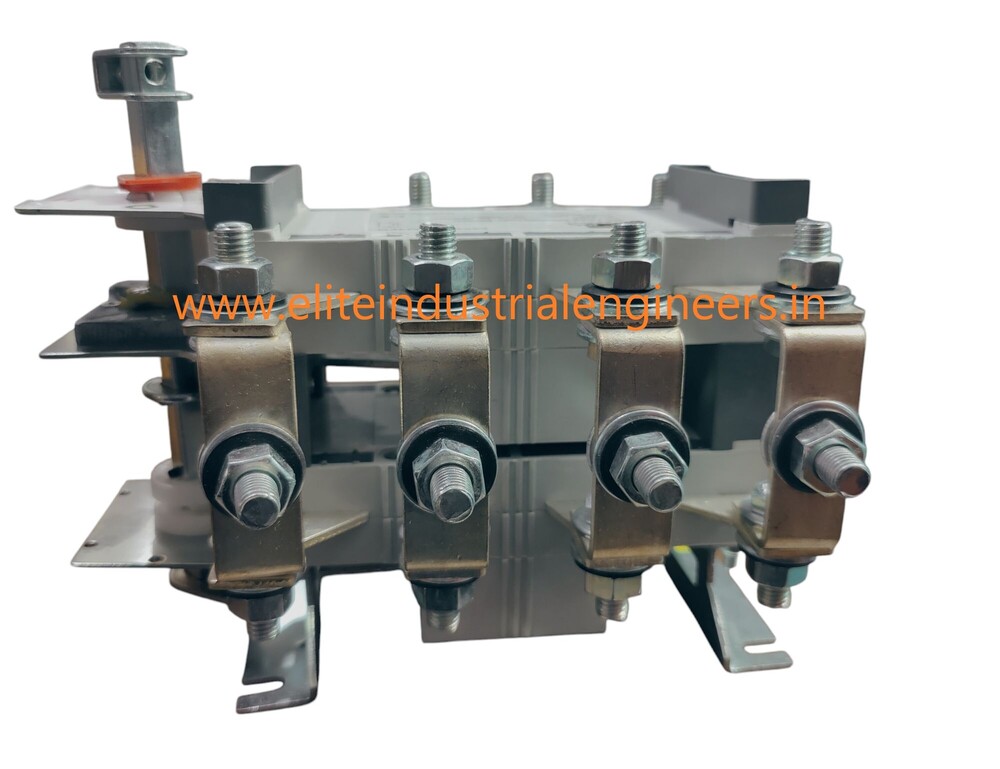

C&S CHANGE OVER SWITCH CSCS250NM4CO

Name: C&S CHANGE OVER SWITCH CSCS250NM4CO
Brand: ELITE INDUSTRIAL ENGINEERS
Price: 13601.2 INR
Availability: InStock

Price 13601.2 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

C&S CHANGE OVER SWITCH CSCS250NM4CO Specification

Remote Control
Yes

Features
Robust construction, reliable performance, silver-plated contacts, compact design, high dielectric strength

Weight
Approx. 6 kg

Control Type
Rotary Switch

Load Capacity
250A

Frequency
50/60 Hz

Connectivity Type
Panel Mounted

Application
Power changeover between mains and generator or other sources

IP Rating
IP54

Phase
Three Phase

Mounting Type
Surface/Panel mount

Automation Grade
Manual

Drive Type
Mechanical Manual Drive

Material
High-grade electrical steel and copper contacts

Power
250A (Ampere) rated current

Temperature
-5°C to +55°C operating range

Voltage
415V AC

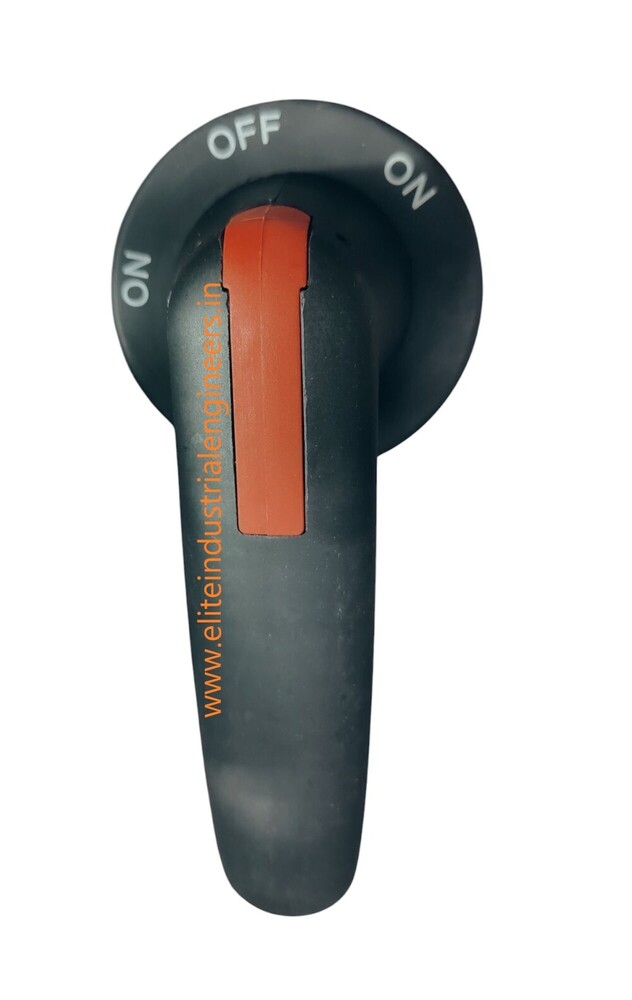

Operating Mechanism
Direct Front Operation

Number of Poles
4 Pole

Short-circuit Withstand Capacity
10 kA

Protection Class
Class II

Insulation Voltage
690V AC

Interlocking Facility
Yes, mechanical interlock for safety

Electrical Life
10,000 operations minimum

Mechanical Life
25,000 operations minimum

Conforming Standards
IS/IEC 60947-3

Terminal Type
Screw terminal with clamp

C&S CHANGE OVER SWITCH CSCS250NM4CO About

Seize this gilt-edged bargain with the C&S CHANGE OVER SWITCH CSCS250NM4CO, now at a remarkable reduced price! Crafted from high-grade electrical steel and copper contacts, this grandiose switch ensures distinguished reliability and extended lifespan with over 25,000 mechanical and 10,000 electrical operations. Boasting an impressive 250A load capacity and a strong short-circuit withstand level of 10kA, it delivers superior protection with a robust mechanical interlock facility. Fully conforming to IS/IEC 60947-3 standards, this is the offer for those seeking exclusive quality and panel-mount convenience.

Unmatched Competitive Edge for Diverse Applications

The C&S CHANGE OVER SWITCH CSCS250NM4CO stands apart with its distinguished safety features-mechanical interlock, robust construction, and silver-plated contacts. Ideal for panel or surface mounting, it suits power transfer between mains, generators, or alternate sources. Designed for grandiose electrical performance, its compact structure, high dielectric strength, and wide operating temperature range deliver a reliable, enduring solution for industrial, commercial, and infrastructure spaces.

Prompt Shipping and International Reach

Benefit from readily available samples and swift order completion with the CSCS250NM4CO. With an efficient FOB port system, your outlay remains minimal and streamlined. Stock is ready for dispatch from India, reaching main export markets worldwide. Place your order and enjoy the assurance of a smooth transaction process, from inquiry to final delivery, supported by a trusted network of distributors, manufacturers, and suppliers.

FAQ's of C&S CHANGE OVER SWITCH CSCS250NM4CO:

Q: How does the interlocking facility enhance user safety?

A: The mechanical interlock ensures that only one power source (mains or generator) is connected at a time, preventing cross-connection and enhancing operational safety during switching.

Q: What are the primary benefits of the CSCS250NM4CO's construction materials?

A: Its high-grade electrical steel and copper contacts, with silver-plating, ensure low contact resistance, minimal power loss, and long-lasting, reliable performance even under demanding conditions.

Q: Where can this change over switch be installed?

A: The switch is designed for both panel and surface mounting, making it suitable for use in industrial facilities, commercial complexes, and infrastructure applications requiring robust power changeover solutions.

Q: What is the process of ordering and stock availability for this product?

A: Samples are available for evaluation, and stock is typically ready for shipment. Orders are processed efficiently through recognized distributors and suppliers to ensure timely order completion.

Q: When is the CSCS250NM4CO most effectively utilized?

A: It is ideal whenever there's a need for secure and reliable switching between two power sources, such as during utility failures or scheduled generator operation.
